Solid Fuel Fired Hot Air Generator

We supply the solid fuel fried hot air generator, which has industry-leading technology for indirect heat exchange. For the product drying between 120℃ and 120℃, the energy saving effect is very obvious compared with electric/coal fired hot air generator. It also has characterristics of environmental, low maintenance cost and non-pollution by using dust collection.

Send Inquiry
Product Details

Solid Fuel Fired Hot Air Generator


1. Product Introduction of the solid fuel fired hot air generator

Solid fuel fired hot air generator is a best option to surface treatment, spraying, painting, electroplating and other surface treatment industry and various coating line; textile printing and dyeing, garment production and other processing, papermaking, packaging and other aspects need to bake; farming, livestock breeding insulation needs and other industrial hot air use, central air condition and heating spaces. It is the most advanced hot-air supply system, it is operated with wood pellet (biomass pellet) providing pure hot air.


2. Product Parameter of the solid fuel fired hot air generator

ITEM


GV-20-H

GV-30-H

GV-45-H

GV-60-H

GV-90-H

GV-120-H

GV-150-H

Rated Calorific Value

104kcal

20

30

45

60

90

120

150

Pressure

Mpa

Atmospheric Pressure

The Thermal Efficiency

%

86%

Air Outlet

mm

350*400

350*400

400*700

500*700

600*800

600*1000

800*1000

Air Inlet

mm

300*350

350*400

350*450

400*500

450*500

500*550

500*550

Air system

kw

0.75

0.9

1.1

1.5

2.2

2.2

3.0

Induced Draft Fan

kw

1.5

2.2

3.0

4.0

5.5

5.5

7.5

Circulation Fan

kw

4.0-5.5

5.5-7.5

7.5-11

11-15

15-18.5

18.5-22

22-30

Smoke crossing

mm

160

220

270

320

375

375

375

Capacity

kg

150

200

200

300

300

400

400

Continuous Running Time

h

24

24

24

24

24

24

24

Weight

kg

2230

2780

3150

3580

3930

4230

4700

Stove Size(L*W*H)

mm

3400*800*1600

3620*900*1760

3800*1000*1860

4100*1100*1960

4300*1250*2060

4600*1400*2160

4900*1550*2260


3. Product Feature of the solid fuel fired hot air generator

1) Intelligent control:  we adopt microcomputer one-button operation, automatic feed,  automatic ignition, automatic temperature control, high reliable operation, which is easy to maintain;

2) The furnace inside is made of 304 stainless steel 5mm thick profiles, and adopts the international top "multi-hearth, multi-return, full cold back" technology to improve efficiency.

3) Heat exchange is accomplished efficiently in the chamber, hot air is directly sent into the heating space, the heating time is faster.

4) Using the technology of international top "multi-hearth and multi-return", the heat transfer area can be increased in large quantity, so that the heat can stay in the furnace for longer, so as to achieve full heat exchange.

5) Built-in cyclone dust removal to achieve smokeless and dust-free emission.

6) The boiler design has multi-layer safety protection device; Eliminate the phenomenon of detonation and tempering.

7) High efficient and energy-saving: Our generator using gasification ways to have complete combustion, heating up rapidly, the thermal efficiency can reach more than 90%; the generator body with a multi-return structure maximally increase the heat transfer area, so the heat can be completely conversion; configured a dedicated afterheat recovery unit, greatly reducing the cost of burning because of the exhaust low pipe temperature


4. Production Details of the solid fuel fired hot air generator

solid fuel fired hot air gernerator3277.png

solid fuel fired hot air gernerator3290.png

Control Cabin

solid fuel fired hot air gernerator3293.png

Induced Draft Fan

solid fuel fired hot air gernerator3289.png

burning chamber

solid fuel fired hot air gernerator3399.png

Feeding Screw

solid fuel fired hot air gernerator3398.png

Feeding motor

solid fuel fired hot air gernerator3495.png

Silos

 solid fuel fired hot air gernerator3494.png

Circulating Fan

<>


5. Economic Analysis of the solid fuel fired hot air generator

600,000kcal/hr hot air generator required for a variety of the economic benefits of energy in contrast.

The following is the cost comparison of various fuels: (RMB)

Fuel

0#Diesel

Natural gas

Electricity

Biomass pellet

Heat value

10200kcal/kg

8500kcal/Nm3

860kcal/KWH

4000kcal/kg

Burner power(Example)

600,000kcal/hr

Need fuel quantity

67kgs

72Nm3

698kw

176kgs

Fuel price

8/kg

4.8/Nm3

1/kwh

1.1/kg

Heat conversion rate

88%

98%

100%

85%

Fuel cost(RMB)

536

346

698

212

Cost saving

324

134

486


Cost saving%

60%

39%

70%

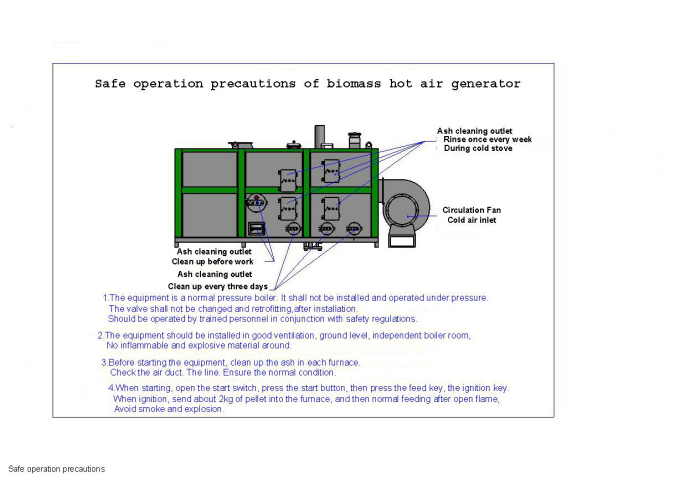

6. Maintenance of the solid fuel fired hot air generator

solid fuel fired hot air gernerator4186.png

solid fuel fired hot air gernerator4259.png


7. Product Qualification of the solid fuel fired hot air generator

solid fuel fired hot air gernerator4345.png

solid fuel fired hot air gernerator4356.png


8. Deliver, Shipping And Serving of the solid fuel fired hot air generator

solid fuel fired hot air gernerator4462.png


9. FAQ

1. Are you the real manufacturer?

Yes, we are specializing in the design and manufacture of environmental protection equipment manufacturers.

2. What kind of after-sales service do you have?

Sale in a positive and serious attitude for the user installation, commissioning equipment and provide technical training for users.

3.,What are the payment methods?

T/T, L/C, Western, Union.

4. Is your price the final price?

No, our equipment has many models. The price of each model is different. The price marked is the best equipment price, the highest price will not be higher than the marked price.

5. Do you undertake overseas agents?

Yes, we very much welcome overseas customers to become agents of our equipment. As our agent, the chamber of Commerce has great discount.
