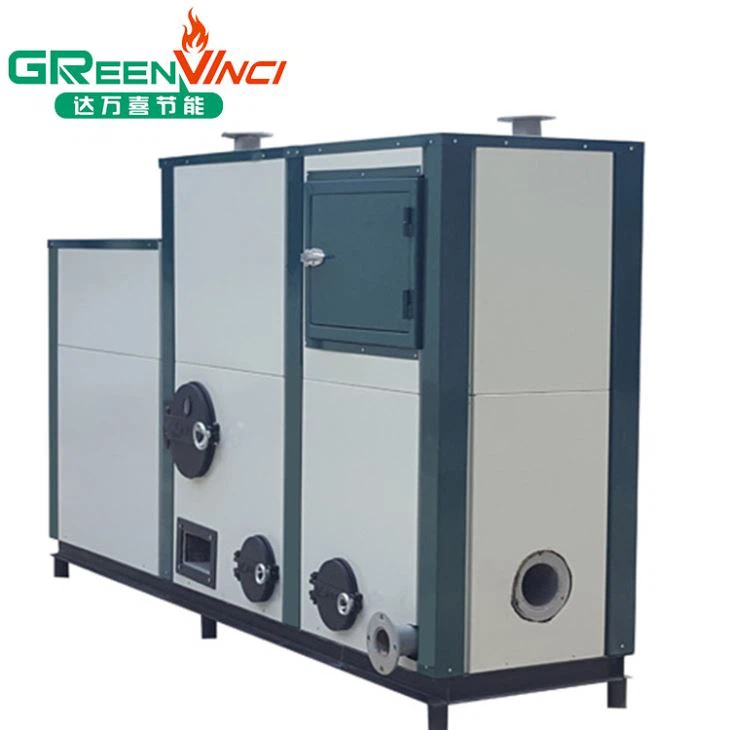

Pellet Hot Water Generator

Pellet hot water generator is atmospheric pressure hot water boiler, it adopts the vertical and horizontal four-return boiler tube composite structure, and adopts the method of suspension combustion, with the built-in heat recovery structure with sepecial design, and the thermal efficiency is above 92%. It has the advantage of high acceptance, environmental friendly, low operating cost.

Send Inquiry
Product Details

Pellet Hot Water Generator


1. Product Introduction of the pellet hot water generator

Pellet hot water generator is a best option to villas, hotels, hospitals, factories, restaurants, schools, sauna center, beauty salon, swimming pool, greenhouse, food factories, laundries, industrial hot water, central air condition and heating spaces. Mainly used in home and industrial to support hot water and other heating system. With the advantage of high acceptance by operators , environmental friendly ,low operating cost, simple operation and maintenance , saving 30 ~ 60% of fuel costs than the traditional fuels Oil/Gas/Electricity boilers.


2. Product Parameter of the pellet hot water generator

ITEM


CLHS0.36-85/65-K

CLHS0.54-85/65-K

CLHS0.72-85/65-K

CHLS1.08-85/65-K

CHLS1.44-85/65-K

CHLS1.80-85/65-K

CHLS2.20-85/65-K

CHLS2.80-85/65-K

CHLS3.30-85/65-K

Rated Calorific Value

104kcal

30

45

60

90

120

150

180

240

300

Pressure

Mpa

Atmospheric Pressure

The Thermal Efficiency

%

92%

Smoke crossing

mm

160

160

220

220

330

330

370

370

430

Air system

kw

0.75

0.75

0.9

1.1

1.5

2.2

2.2

3.0

4.0

Induced Draft Fan

kw

2.2

2.2

3.0

3.0

4.0

4.0

5.5

7.5

7.5

Heating area

1800-2500

2700-3500

4500-5500

6500-8000

9000-11000

12000-14000

15000-17000

21000-24000

30000-36000

Hopper capacity

kg

200

300

400

400

500

500

600

800

800

Outlet diameter

mm

89

89

102

102

120

120

140

140

160

Water yield(t40)

T/h

6.5

11

13

19.5

26

32

39

52

65

Weight

kg

1380

1520

1880

2350

2850

3350

3850

4380

6350

Boiler Size(L*W*H)

mm

3100*700*1700

3300*800*1800

3500*900*1900

3800*1000*2070

4100*1100*2240

4400*1200*2390

4700*1300*2550

5300*1500*2850

5900*1700*3100


3. Product Feature of the pellet hot water generator

● Biomass combustion technology in fully combustion, smoke-free, no tar, no wastewater discharge compliance with environmental compliance requirements.

● Special heating equipment, thermal efficiency up to 96%, exhaust gas temperature is below 80 degrees (the thermal efficiency of other similar products only up to 80%, exhaust gas temperature higher than 150 degrees).

● Atmospheric work, intelligent circuit control the fire.

● Biomass energy is a friendly, non-polluting, renewable, low-carbon energy, and can save 50% cost compared with oil and gas.

● Can be used for civilian or industrial equipment ,provide hot water, dual-use equipment according to the requirements of production and pressure hot water equipment, and atmospheric water vapor.


4.  Installation instruction of the pellet hot water generator

Pellet Hot Water generator2777.png


5. Economic Analysis of the pellet hot water generator

Hot water boiler production per hour 60 degrees hot water(starting temperature is 20 degrees) needed for one ton of comparing all kinds of energy.

The following is the cost comparison of various fuels: (RMB)

Fuel

0#Diesel

Natural gas

Electricity

Coal

Biomass pellet

Heat value

10200kcal/KW

8500/kg

860kcal/Nm3

5500kcal/kg

4000kcal/kg

Need fuel quantity

4.5kgs

5Nm3

46kw

11kgs

12kgs

Fuel price

8/kg

4.8/Nm3

1/kwh

1/kg

0.9/kg

Heat conversion rate

88%

95%

100%

70%

90%

Fuel cost(RMB)

36

24

46

11

10.8

Cost saving

22.8

10.8

32.8

0.2


Cost saving%

63%

45%

71%

2%

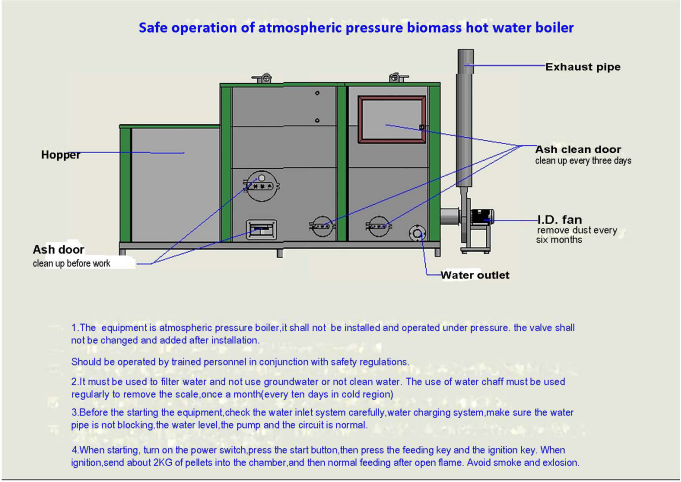

6. Maintenance of the pellet hot water generator

Pellet Hot Water generator3469.png

Pellet Hot Water generator3493.png


7. Product Qualification of the pellet hot water generator

Pellet Hot Water generator3574.png

Pellet Hot Water generator3589.png


8. Deliver, Shipping And Serving of the pellet hot water generator

Pellet Hot Water generator3620.png


9. FAQ

Application of A Pellet Hot Water Boiler

Widely used in hotels, hotels, sauna bath, leisure members, beauty salons, villas, buildings, apartments, factories, schools and enterprises with hot water, bath and heating.

What Kind of Fuel Can be Used in this Boiler

Customer can choose any kind of biomass pellet, including wood pellet, saw dust pellet, straw pellet, corn cob pellet and so on.

Does it Has Protection Device?

Yes, it has multiple safety protection device to avoid dangerous during using this boiler. There is automatic stop program and temperature sensor. Every process is monitored and protected.

How do I install the chimney

If you do not know how to install the chimney, please contact us with your landscape drawings. Our engineer will design and support you to install the chimney right.

Do I have to Install a Dust Collector?

Our products are equipped with heat recovery device, there is also a water dust collector. For most customers, there is no need to install an extra device.

Delivery Time and Shipping Period?

Delivery time is depends on the order quantity and our produce schedule. Small orders normally can be shipped out within 7 days.
Shipping period is normally 30~50 days.

Warranty?

We provide a 12 months warranty period. We provide free replacement for broken parts (exclude man made damage)
