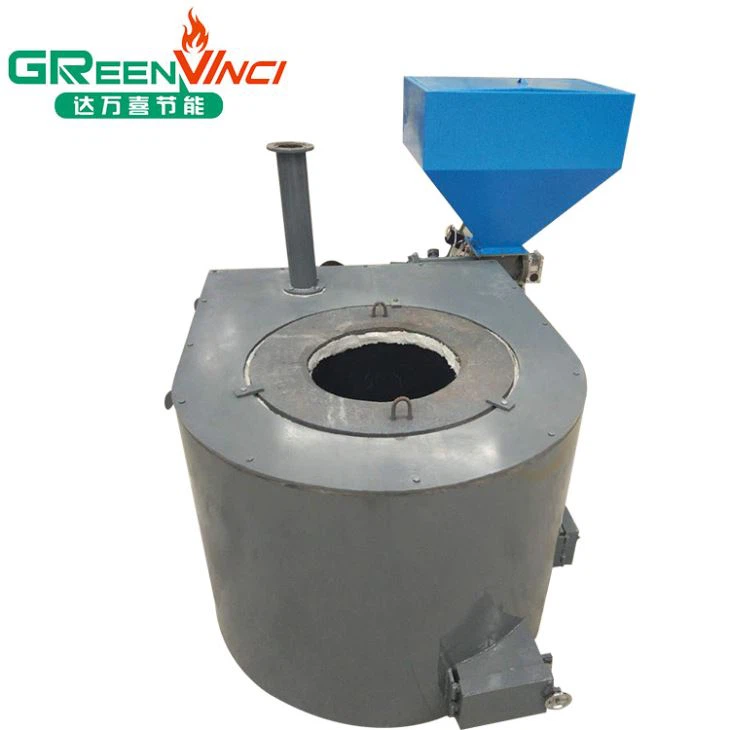

Aluminum Scrap Melting Furnace

Aluminum scrap melting furnace is combined with burning, melting and holding. Widely use in melting aluminum scrap for die casting machine use. It’s more energy saving, environmental and cost saving.

Send Inquiry
Product Details

Aluminum Scrap Melting Furnace


Aluminum scrap melting is a metal melting furnace which is designed and developed by our company with high temperature combustion chamber, built-in dust removal device and heat recovery unit. Adopt automatic feeding system, effectively prevent backfire, ensure the safety of users and the normal operation of the furnace. It is samll aluminum scrap melting furnace,usually supporting die casting machine use. More environmental and cost saving.


2. Product Parameter of the Aluminum scrap melting furnace

Item no.

Melting capacity

Liquid alu capacity

Die-casting machine

Power

Size(LxWxH)

GV-300-AL

100kg/h

300kg

180T-350T

0.75kw

1700

1600

1770

GV-500-AL

150kg/h

500kg

350T-500T

0.75kw

1800

1600

1800

GV-800-AL

180kg/h

800kg

500T-630T

1.3kw

2000

1900

2150


3. Product Feature of the Aluminum scrap melting furnace

1) Efficient: integrating melting insulation, gasification and combustion of swirling air distribution design, heating surface, aluminum water production efficiency;

2) Melting: rapid melting, low production cost, low pollution;

3) Convenient: can directly from the cold furnace melting, the solution can be all empty, easy replacement of molten material varieties;

4) Flexible: flexible power regulation, can continuous smooth adjustment; Uniform temperature easy to control, less oxidation burning loss, metal components uniform;

5) Environmental protection: the renewable biomass pellet fuel, low carbon ring, conform to the national environmental protection requirements;

6) Security: new energy saving furnace lining, automatic constant temperature, fault alarm, easy to operate, can be used with manipulator.

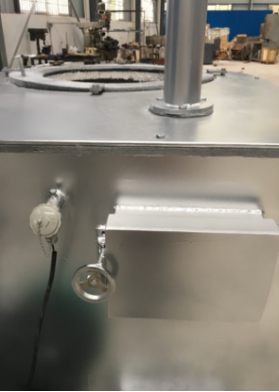

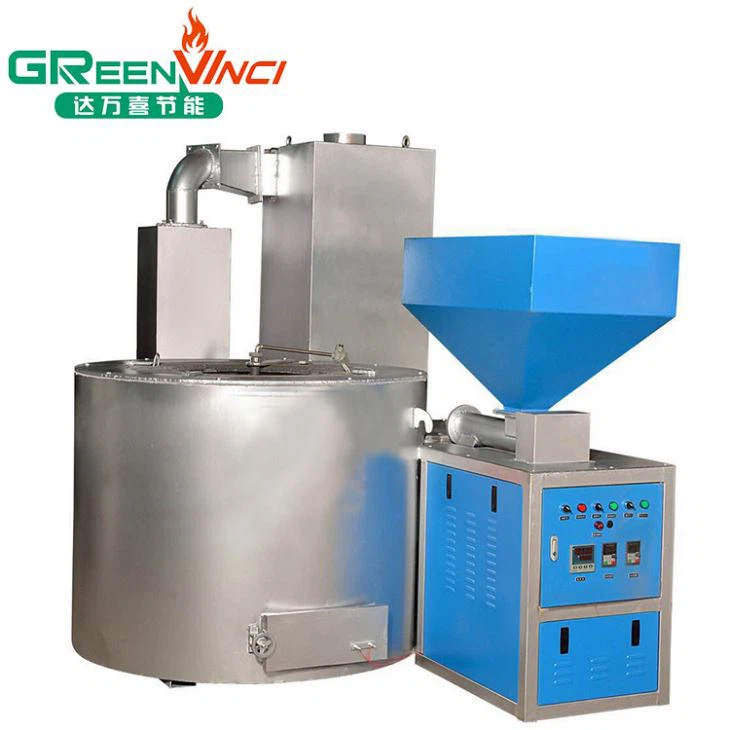

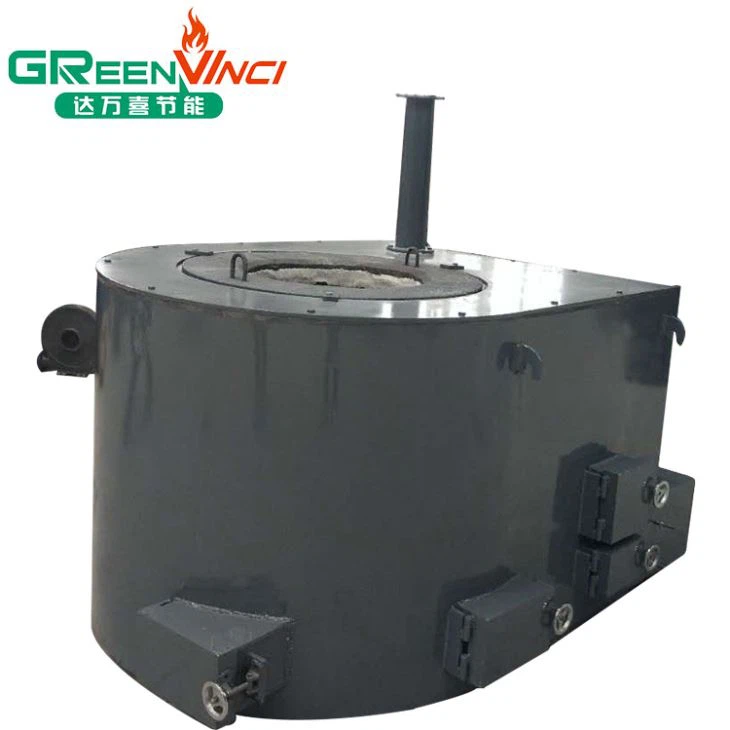

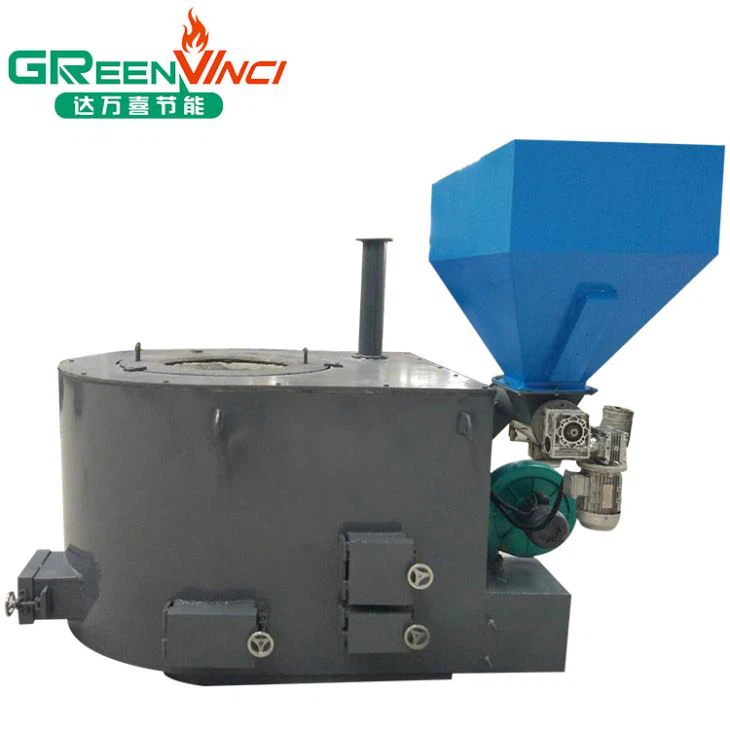

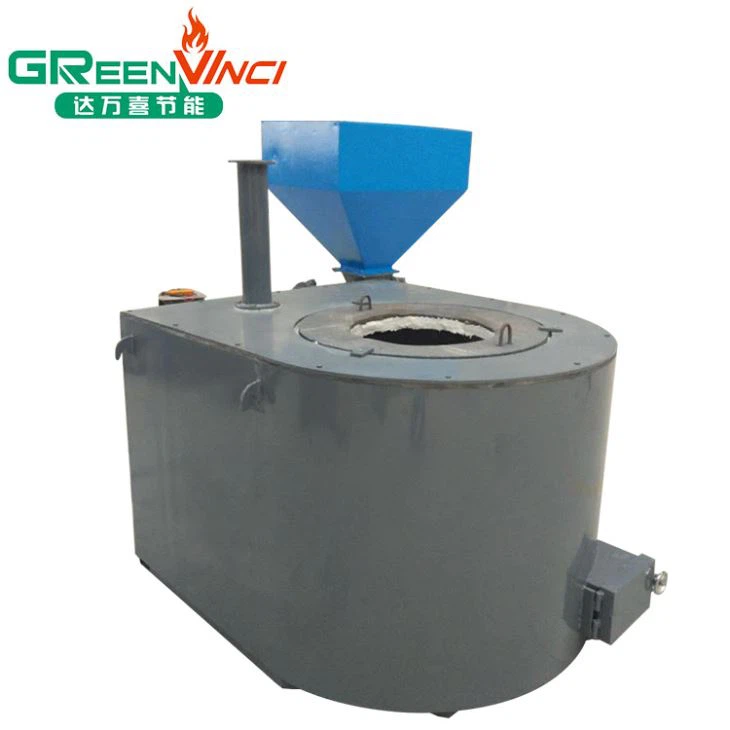

4. Production Details of the Aluminum scrap melting furnace

aluminum scrap melting furnace1948.png
aluminum scrap melting furnace2007.png

aluminum scrap melting furnace2020.png

aluminum scrap melting furnace2031.png

aluminum scrap melting furnace2021.png


5. Economic Analysis of the Aluminum scrap melting furnace

Take a 280 T die casting machine for example, 24 hours a day production, one day out of 4,000 die; 400g per modulo calculation; daily consumption of aluminum liquid 1600kg; work 30 days a month, working 300 days a year total.

The following is the cost comparison of various fuels: (RMB)

Fuel

Electricity

Diesel

Gas

Biomass

Heat value

860kcal/KW

10200/kg

8500kcal/Nm3

4000kcal/kg

Unit price

0.9/kw

8/kg

4.8/Nm3

1.1/kg

Fuel consumption /T alu.liquid

500Kw

100kg

120Nm3

250kg

Cost/T

450

800

576

275

Melting alu.liquid per day

1.6T

Cost/day

720

1280

921.6

440

Cost saving/day

280

840

481.6

Cost saving/month

8400

25200

14430

Cost saving/year

84,000

252,000

144,300

Cost saving %

38%

65%

52%


6. Product Qualification of the Aluminum scrap melting furnace

aluminum scrap melting furnace2883.png



7. Deliver, Shipping And Serving of the Aluminum scrap melting furnace

aluminum scrap melting furnace3010.png


8. FAQ

1) Are you the real manufacturer?

Yes, we are specializing in the design and manufacture of environmental protection equipment manufacturers.

2) What kind of after-sales service do you have?

Sale in a positive and serious attitude for the user installation, commissioning equipment and provide technical training for users.

3) What are the payment methods?

T/T, L/C, Western, Union.

5) Do you undertake overseas agents?

Yes, we very much welcome overseas customers to become agents of our equipment. As our agent, the chamber of Commerce has great discount.

6) Can it work continuous?

Yes, it can keep working for 24 hours x 7days.
7) Can it be fed automatic?

Yes, we have automatic feeding system.
