Product introduction

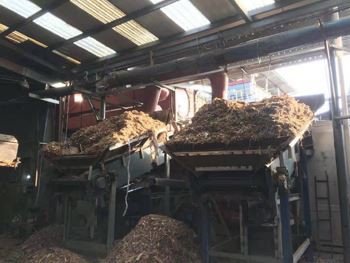

The biomass burner sends the fuel into the top hopper through a belt conveyor. Then fuel enters the furnace through a closed feeder and are evenly distributed on the grate. The fuel thickness is between 150-350mm. The biomass fuel is preheated and dried on the grate, and then enters the high-temperature oxidation zone to crack out combustible gases such as CO, H2, and CnHn. Part of the combustible gas is burned in the furnace, and the other part is output to the burner and then burned with oxygen for a second time to form a semi-gasification compound and complete combustion.
The burned ash will continuely pushed out of the burner by moving grate and discharged by ash removal machine.
GreenVinci Industrial Solid Waste Burner for boiler is suitable to be used with the industrial boiler, dryer, kilns and melting furnace to provide heat energy to the production line.
Fuel: cloth waste, sponge, leather, paper waste, plastics etc.
Case study
After the discussion, customer is an Indian boiler manufacturer with paper mill customer resources. The paper mill customer's production materials include BOPP (polypropylene) waste, which contains 5% waste paper. Customer wants to purchase a solid waste gasifier to heat a 20 ton boiler. The product of polypropylene after full combustion is carbon dioxide and water. The combustion equation is: 2 (C3H6) n + 9no2 ----- 6nco2 + 6nh2o. The temperature of melting section is 240 ℃, and the decomposition temperature is more than 350 ℃, which is higher than its decomposition temperature for combustion. No blocks resulting in plugging of pipeline and heat storage. The heat value is 11671 kcal / kg. It shows that a 20 ton boiler needs to burn more than 1 ton / hour of polypropylene waste. In order to prevent the air cap of droplet blockage caused by low temperature dissolution of waste into the gasifier, it is designed to mix wood chips to burn to solve the problem .

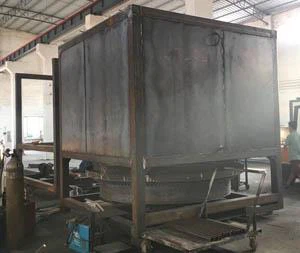

Equipment: customized 20 ton solid waste gasifier (professional design suitable for biomass wood chip and polypropylene waste);
Fuel used: polypropylene waste and wood chips with moisture content ≤ 30%
Feeding system: sealed, smoke free, suitable for multi fuel automatic feeding system
Working hours: 24 hours / day * 28 days
Technological advantages
1. Unique high temperature pyrolysis gasification combustion mode, no tar, no waste water, full combustion, no carbon, high thermal efficiency;
2. Low investment cost, high cost performance, stable and continuous operation, safe and risk-free;
3. The unique air distribution technology of rotary grate enables the emission of carbon monoxide in flue gas to reach the standard;
4. Safe and stable process system, independent research and development of biomass continuous feeding system, which is suitable for a variety of fuels;
5. The equipment operates under micro negative pressure, high temperature gas does not leak, safe and stable, and the production workshop is clean without peculiar smell and pollution;
6. High automation, low labor cost. Only one worker and forklift driver are needed to operate one boiler;
Technical specifications
Capacity from 0.3 ton to 30 ton, only a few of models showed.
|
Capacity |
300 kg |
500 kg |
750 kg |
1000 kg |
|
Fuel |
Wood chips, BOPP, cloth waste, leather, sponge and other combustible solid wastes |
|||
|
Temperature |
800~1200℃ |
|||
|
Size |
2.6*2.6*3m |
3*3*3m |
5.2*2.6*3m |
6*3*3m |
|
Number of rotating grate |
1 |
1 |
2 |
2 |
|
Electric cabinet |
All motors are equipped with frequency converter Converter brand: Delixi |
|||
Our service
Pre-sales service
Factory and running sites visiting!
Life-long online support and low-cost maintenance!
FAQ
(1) What are the design parameters of the machine?
The type, calorific value and density of fuel, air supply volume , combustion temperature, exhaust gas volume, exhaust gas combustion residence time, etc.
(2) What are the merits and demerits of the machine?
Merits:
A: The solid waste is pyrolyzed, gasified and combusted under anoxic condition, so the amount of dust is very little which greatly eases the exhaust gas treatment.
B: Unique gasification and combustion process, adopting high-temperature gasification pyrolysis and precise air supply volume control system, without secondary harmful gas pollution, can reach the specified exhaust gas standard.
C: Adopt advanced rotating grate and suspension combustion technology to avoid caking and slagging.
D: When the calorific value of solid waste is more than 2400 kcal, no additional fuel is needed for burning, and the temperature of burning chamber is more than 1000 ℃.
E: Short installation period, sample operation and small ground occupation area.
Demerits : High cost.
(3) How much moisture will be acceptable of the fuel?
≤30%
(4)What should be the size of fuel?
The wood chips can be 200 mm long and 50 mm wide, and the plastic film can be used after crushing.
