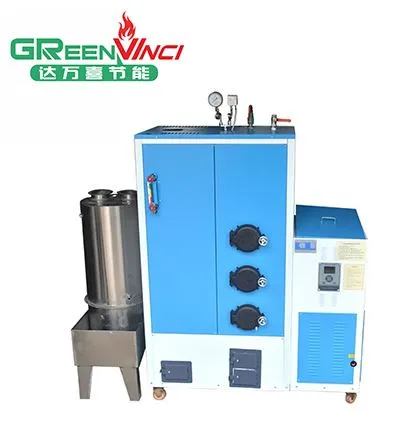

Product Introduction
Pellet steam generator is low capacity steam boiler, no need for security check from government department. It is a small biomass steam boiler that widely used in can be used in Automatic coffee machine industry, Cleaning oil fields,producing form,Wood disinfection,Brewery industry.. It has advantages of fully automatic operation,rapid steam production,high steam drying. Compared to oil, gas, electric heating boiler, it can save 30%-80% running cost!
Product Parameter
| Model | Rated evaporation |
Rated Working Pressure |
Rated Steam Temperature |
Full Load Consumption |
Size | Weight | Working Voltage |
Power | Steam Diameter |
Safety Valve |
Water Inlet |
Sewage outfall |
Funnel Outlet |
| kg/h | Mpa | ℃ | BMF, kg/h | L*W*H(mm) | kg | V | kw | DN(mm) | DN(mm) | DN(mm) | DN(mm) | mm | |
| LSG0.25*2-0.4-S | 500 | 0.7 | 170 | 83-88 | 1800*1260*2700 | 1600 | 220/380 | 7.0 | 40 | 25 | 25 | 25 | φ219 |
| LSG0.3-0.7-M-F | 300 | 0.7 | 170 | 46-56 | 2200*840*2310 | 860 | 220 | 3.0 | 25 | 25 | 15 | 25 | φ219 |
| LSG0.2-0.7-M-F | 200 | 0.7 | 170 | 32-36 | 2200*840*2210 | 830 | 220 | 2.8 | 25 | 25 | 15 | 25 | φ219 |
| LSG0.15-0.7-M-F | 150 | 0.7 | 170 | 25-28 | 2200*840*2000 | 790 | 220 | 2.8 | 20 | 25 | 15 | 25 | φ219 |
| LSG0.1-0.7-M-F | 100 | 0.7 | 170 | 20-23 | 1400*620*1750 | 750 | 220 | 2.0 | 20 | 20 | 15 | 25 | φ133 |
| LSG0.08-0.7-M | 80 | 0.7 | 170 | 14-18 | 1400*620*1800 | 725 | 220 | 2.8 | 25 | 20 | 15 | 25 | φ108 |
| LSG0.05-0.7-M | 50 | 0.7 | 170 | 10-13 | 1400*620*1420 | 530 | 220 | 2.5 | 15 | 15 | 15 | 25 | φ108 |
| LSG0.03-0.7-M | 30 | 0.7 | 170 | 7-9 | 1400*620*1270 | 300 | 220 | 2.0 | 15 | 15 | 15 | 25 | φ108 |
Product Features
1) Low running cost, biomass pellet is a green fuel, the cost is only 20% of electric powered steam generator, 35% of oil or gas fired steam generator.
2) Ignition System: automatic ignition using Switzerland instant high temperature dual ignition device, fast ignition, high efficiency, long life.
3) Feeding System: The primary and secondary feeders of the feed system has a blank and flap, there is no tempering phenomenon, and the load reduction of the feed system is reduced.
4) Control System: equipped with integrated microcomputer control system to achieve one-button operation, automatic feeding, automatic ignition, blast and induced wind parameters of the program settings, heating power can be directly adjustment.
5) Combustion System: Special designed biomass pellet burner, the use of three vertical recirculation oxygen and air technology, pellet combustion is completely, smoke-free, dust-free, environment friendly
6) Widely Used: can be used in Automatic coffee machine industry, Cleaning oil fields,producing form,Wood disinfection,Brewery industry.
Production Details
Economic Analysis
Compare the fuel consumption per 100kgs steam ($USD):
|
Electricity |
0#diesel |
LPG |
Gas |
Biomass |
|
|
Rated fuel consumption |
72KW/H |
6.8KG/H |
16.5NM3/H |
7.8 NM3/H |
16KG/H |
|
Fuel price |
1/KW |
6/KG |
6/KG |
3/M3 |
1/KG |
|
Fuel cost per 100kgs steam |
72 |
40.8 |
99 |
23.4 |
16 |
|
Relative energy efficiency |
77.78% |
60.78% |
83.84% |
31.62% |
|
|
Cost saving/hr (80% capacity) |
6.60 |
2.92 |
9.78 |
0.87 |
|
|
Cost saving/day (8hrs) |
52.77 |
23.37 |
78.21 |
6.97 |
|
|
Cost saving/month (26 days) |
1371.91 |
607.56 |
2033.36 |
181.29 |
|
|
Cost saving/year (11 months) |
15090.62 |
6684.04 |
22363.56 |
1987.54 |
|
|
Cost saving/3 years |
45271.85 |
20022.67 |
67105.40 |
5977.36 |
|
|
Cost saving/5 years |
75453.09 |
33420.20 |
111832.52 |
9967.17 |
Product Qualification
Deliver, Shipping And Serving
8. FAQ
Q1.Application of A Pellet Steam Generator
A:Washing ironing industry: dry cleaning machine, dryer, washing machine, dehydration machine, ironing machine, iron, and other equipment supporting the use of.
Packaging machinery industry: labeling machine, sets of standard machine supporting the use of
Biochemical industry: fermentation tank, reactor, sandwich pot, mixer, emulsifier and other equipment supporting the use of.
Food machinery industry: tofu machine, steamer, sterilization tank, packaging machine, paint equipment, sub-machine, and other equipment supporting the use of.
Other industries: (oil, automobile) steam cleaning industry, (hotels, dormitories, schools, mixing stations) hot water supply, (bridges, railways) concrete maintenance, (leisure beauty club) sauna bath, heat exchange equipment.
Q2.What Kind of Fuel Can be Used in this Boiler?
A:Customer can choose any kind of biomass pellet, including wood pellet, saw dust pellet, straw pellet, corn cob pellet and so on.
Q3.Does it Has Protection Device?
A:Yes, it has multiple safety protection device to avoid dangerous during using this boiler. There is automatic stop program and temperature sensor. Every process is monitored and protected.
Q4.How do I install the chimney?
A:If you do not know how to install the chimney, please contact us with your landscape drawings. Our engineer will design and support you to install the chimney right.
Q5.Do I have to Install a Dust Collector?
Our products are equipped with heat recovery device, there is also a water dust collector. For most customers, there is no need to install an extra device.
Q6.Delivery Time and Shipping Period?
Delivery time is depends on the order quantity and our produce schedule. Small orders normally can be shipped out within 7 days.
Shipping period is normally 30~50 days.
Q7.Warranty?
We provide a 12 months warranty period. We provide free replacement for broken parts (exclude man made damage).
