Indirect Fired Hot Air Generator

Indirect fired hot air generator is the thermal equipment integrating with burning, heat exchange, dust removal, circulating air, emissions and other functions. The energy is converted into fresh hot air in one-time. It is different from the traditional electric/coal fired hot air generator, which is not bulky, complicated structure, high cost and difficult to maintain. It is widely used in drying industry of 120℃ - 200℃ becaused of high efficiency energy saving.

Send InquiryChat Now
Product Details

Indirect fired Hot Air Generator


1. Product Introduction of the indirect hot air generator

Indirect hot air generator is manufactured for the hot air supply of industrial and agricultural drying plants. With the use of regionally available biomass instead of traditional fuels, the drying costs can be significantly reduced. Flexible technology and years of experience in the design of hot air systems allow the combination with almost all available dryer models. Customized production is more suitable for customers' needs. Full automatic feeding system can save labor cost for customers.


2. Product Parameter of the biomass hot air generator

ITEM


GV-20-H

GV-30-H

GV-45-H

GV-60-H

GV-90-H

GV-120-H

GV-150-H

Rated Calorific Value

104kacl

20

30

45

60

90

120

150

Pressure

Mpa

Atmospheric Pressure

The Thermal Efficiency

%

86%

Air Outlet

mm

350*400

350*400

400*700

500*700

600*800

600*1000

800*1000

Air Inlet

mm

300*350

350*400

350*450

400*500

450*500

500*550

500*550

Air system

kw

0.75

0.9

1.1

1.5

2.2

2.2

3.0

Induced Draft Fan

kw

1.5

2.2

3.0

4.0

5.5

5.5

7.5

Circulation Fan

kw

4.0-5.5

5.5-7.5

7.5-11

11-15

15-18.5

18.5-22

22-30

Smoke crossing

mm

160

220

270

320

375

375

375

Capacity

kg

150

200

200

300

300

400

400

Continuous Running Time

h

24

24

24

24

24

24

24

Weight

kg

2230

2780

3150

3580

3930

4230

4700

Stove Size(L*W*H)

mm

3400*800*1600

3620*900*1760

3800*1000*1860

4100*1100*1960

4300*1250*2060

4600*1400*2160

4900*1550*2260


3. Product Feature of the biomass hot air generator

◆ Full intelligent control system, automatic feeding, automatic temperature control, automatic ignition, over temperature protection, fault alarm, convenient operation

◆ The furnace inside is made of 304 stainless steel 5mm thick profiles, and adopts the international top "multi-hearth, multi-return, full cold back" technology to improve efficiency.

◆ Using the technology of international top "multi-hearth and multi-return", the heat transfer area can be increased in large quantity, so that the heat can stay in the furnace for longer, so as to achieve full heat exchange.

◆ Built-in cyclone dust removal to achieve smokeless and dust-free emission.

◆ The boiler design has multi-layer safety protection device; Eliminate the phenomenon of detonation and tempering.

◆ Using the unique semi-gasification boiling combustion system, the ash content is 86% less than the traditional combustion method (direct combustion).


4. Production Details of the biomass hot air generator

solid fuel fired hot air gernerator3277.png

solid fuel fired hot air gernerator3290.png

 Control Cabin

solid fuel fired hot air gernerator3293.png

  Induced Draft Fan

solid fuel fired hot air gernerator3289.png

 burning chamber

solid fuel fired hot air gernerator3399.png

    Feeding Screw

solid fuel fired hot air gernerator3398.png

Feeding motor

solid fuel fired hot air gernerator3495.png

Silos

solid fuel fired hot air gernerator3494.png

Circulating Fan


5. Economic Analysis of the biomass hot air generator

600,000kcal/hr hot air generator required for a variety of the economic benefits of energy in contrast.

The following is the cost comparison of various fuels: (RMB)

Fuel

0#Diesel

Natural gas

Electricity

Biomass pellet

Heat value

10200kcal/kg

8500kcal/Nm3

860kcal/KWH

4000kcal/kg

Burner power(Example)

600,000kcal/hr

Need fuel quantity

67kgs

72Nm3

698kw

  176kgs

Fuel price

8/kg

4.8/Nm3

  1/kwh

1.1/kg

Heat conversion rate

88%

98%

100%

85%

Fuel cost(RMB)

536

346

698

212

Cost saving

324

134

486


Cost saving%

60%

39%

70%



6. Maintenance of the biomass hot air generator

indirect fired hot air generator3583.png

indirect fired hot air generator3648.png

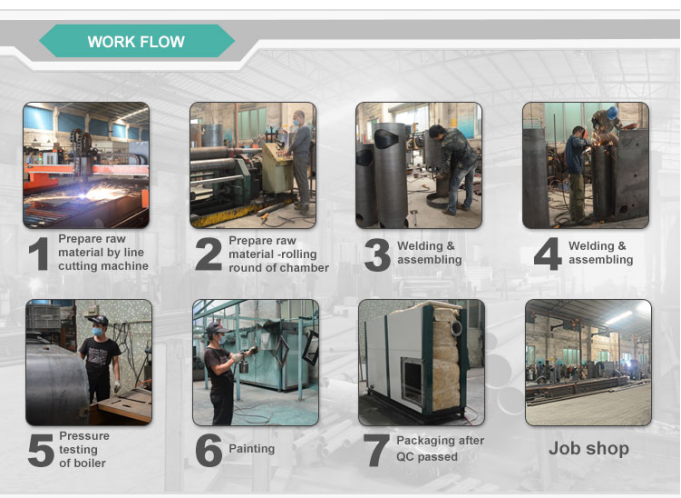

7. Product Qualification of the biomass hot air generator

solid fuel fired hot air gernerator4345.png

solid fuel fired hot air gernerator4356.png


8. Deliver, Shipping And Serving of the biomass hot air generator

solid fuel fired hot air gernerator4462.png


9. FAQ

    1. Are you the real manufacturer?

    Yes, we are specializing in the design and manufacture of environmental protection equipment manufacturers.

    2. What kind of after-sales service do you have?

    Sale in a positive and serious attitude for the user installation, commissioning equipment and provide technical training for users.

    3. What are the payment methods?

    T/T, L/C, Western, Union.

    4. Is your price the final price?

    No, our equipment has many models. The price of each model is different. The price marked is the best equipment price, the highest price will not be higher than the marked price.

    5. Do you undertake overseas agents?

    Yes, we very much welcome overseas customers to become agents of our equipment. As our agent, the chamber of Commerce has great discount.
