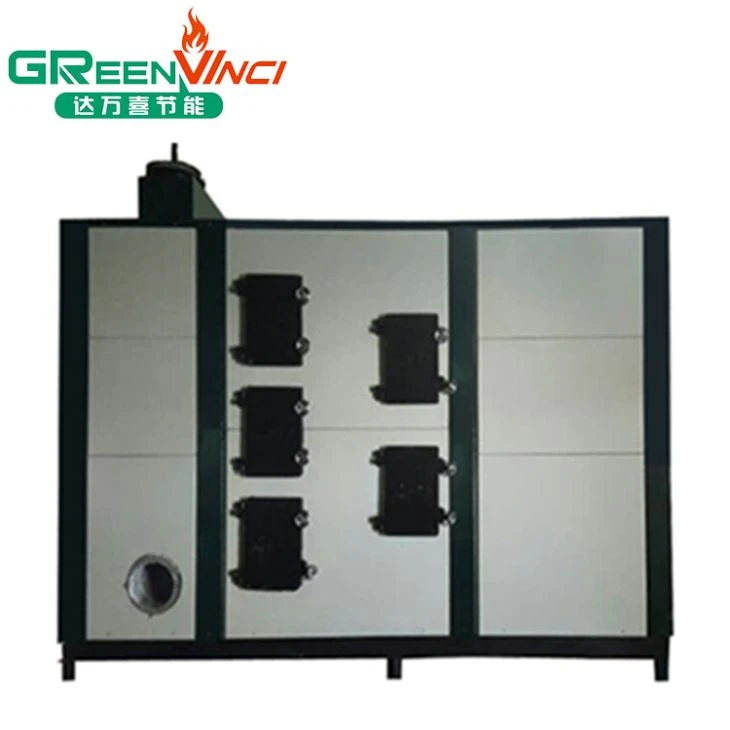

Product Introduction
Industrial hot air generator is a best option to surface treatment, spraying, painting, electroplating and other surface treatment industry and various coating line; textile printing and dyeing, garment production and other processing, papermaking, packaging and other aspects need to bake; farming, livestock breeding insulation needs and other industrial hot air use, central air condition and heating spaces. It is the most advanced hot-air supply system, it is operated with wood pellet (biomass pellet) providing pure hot air.
Product Parameter
ITEM | GV-20-H | GV-30-H | GV-45-H | GV-60-H | GV-90-H | GV-120-H | GV-150-H | |
Rated Calorific Value | 104kacl | 20 | 30 | 45 | 60 | 90 | 120 | 150 |
Pressure | Mpa | Atmospheric Pressure | ||||||
The Thermal Efficiency | % | 86% | ||||||
Air Outlet | mm | 350*400 | 350*400 | 400*700 | 500*700 | 600*800 | 600*1000 | 800*1000 |
Air Inlet | mm | 300*350 | 350*400 | 350*450 | 400*500 | 450*500 | 500*550 | 500*550 |
Air system | kw | 0.75 | 0.9 | 1.1 | 1.5 | 2.2 | 2.2 | 3.0 |
Induced Draft Fan | kw | 1.5 | 2.2 | 3.0 | 4.0 | 5.5 | 5.5 | 7.5 |
Circulation Fan | kw | 4.0-5.5 | 5.5-7.5 | 7.5-11 | 11-15 | 15-18.5 | 18.5-22 | 22-30 |
Smoke crossing | mm | 160 | 220 | 270 | 320 | 375 | 375 | 375 |
Capacity | kg | 150 | 200 | 200 | 300 | 300 | 400 | 400 |
Continuous Running Time | h | 24 | 24 | 24 | 24 | 24 | 24 | 24 |
Weight | kg | 2230 | 2780 | 3150 | 3580 | 3930 | 4230 | 4700 |
Stove Size(L*W*H) | mm | 3400*800*1600 | 3620*900*1760 | 3800*1000*1860 | 4100*1100*1960 | 4300*1250*2060 | 4600*1400*2160 | 4900*1550*2260 |
Product Features
1) Full intelligent control system, automatic feeding, automatic temperature control, automatic ignition, overtemperature protection, fault alarm, convenient operation
2) The furnace inside is made of 304 stainless steel 5mm thick profiles, and adopts the international top "multi-hearth, multi-return, full cold back" technology to improve efficiency.
3) Built-in cyclone dust removal to achieve smokeless and dust-free emission.
4) The boiler design has multi-layer safety protection device; Eliminate the phenomenon of detonation and tempering.
5) Using the unique semi-gasification boiling combustion system, the ash content is 86% less than the traditional combustion method (direct combustion).
Production Details
 | ||
Control Cabin |
Induced Draft Fan |
burning chamber |
Feeding Screw |
Feeding motor |
Silos |
Circulating Fan |
Economic Analysis
600,000kcal/hr hot air generator required for a variety of the economic benefits of energy in contrast.
The following is the cost comparison of various fuels: (RMB)
Fuel | 0#Diesel | Natural gas | Electricity | Biomass pellet |
Heat value | 10200kcal/kg | 8500kcal/Nm3 | 860kcal/KWH | 4000kcal/kg |
Burner power(Example) | 600,000kcal/hr | |||
Need fuel quantity | 67kgs | 72Nm3 | 698kw | 176kgs |
Fuel price | 8/kg | 4.8/Nm3 | 1/kwh | 1.1/kg |
Heat conversion rate | 88% | 98% | 100% | 85% |
Fuel cost(RMB) | 536 | 346 | 698 | 212 |
Cost saving | 324 | 134 | 486 | |
Cost saving% | 60% | 39% | 70% | |
Product Qualification
Deliver, Shipping And Serving
FAQ
Q1:How can you get the best price quickly?
A:As soon as the steam capacity and pressure are told, we will make the detail price list at once.
Q2:Why should you believe our quality?
A:20 years manufacturing experience, one of the leading enterprises in the industry
Quality control system: Include 8 subsystems, design, technic, welding, inspection, non-destructive testing,
Q3.What about control system?
A:heat treatment, materials physics and chemistry inspection, device management. Each process will be.strict supervised. 5 process quality point, Raw materialinspection, product specimen, NDT, hydrostatic test, Heat treatment. The products must be inspected by third party before delivery.
Q4.What about the installation?
A:When you receive the generator, we will guide you to make some preparation for installation.
