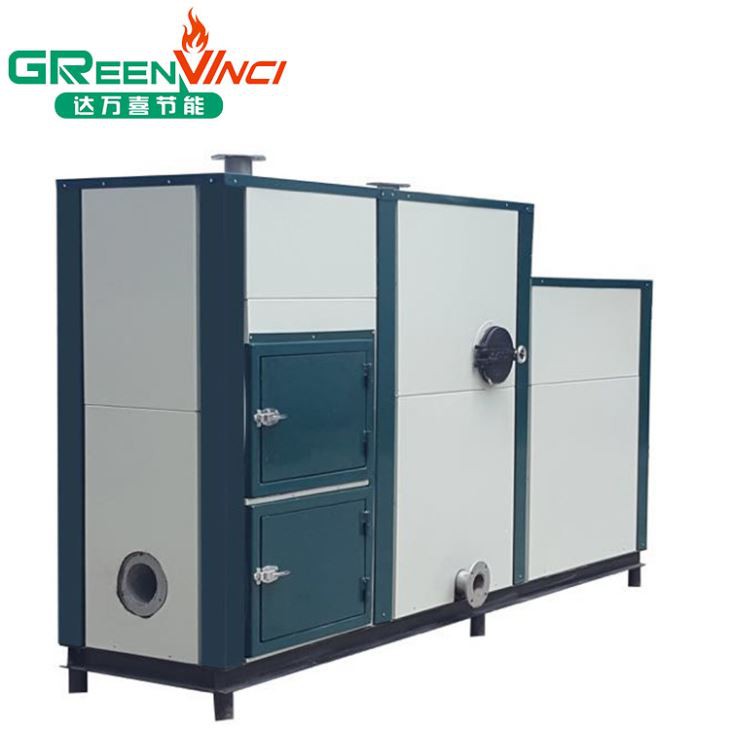

Pellet Fired Hot Water Boiler

It specially designed waste heat recovery system which leads to increasement t of thermal efficiency,up to 93%. Statistically, the cost of this boiler is 30%-65% less than oil, gas, electric heating boilers.Pellet fired hot water boiler is semi-gasification fluidized combustion boiler, including vertical and horizontal "multiple chambers, multiple returns" structure, intelligent control panel etc.

Send InquiryChat Now
Product Details

Product Introduction

Pellet fired hot water boiler is semi-gasification fluidized combustion boiler, including vertical and horizontal "multiple chambers, multiple returns" structure, intelligent control panel etc.Further,it specially designed waste heat recovery system which leads to increasement t of thermal efficiency,up to 93%. Statistically, the cost of this boiler is  30%-65% less than oil, gas, electric heating boilers.Besides,burning materials are biomass, inclulding wood chips,pellet etc.




Product Parameter

ITEM


CLHS0.36-85/65-K

CLHS0.54-85/65-K

CLHS0.72-85/65-K

CHLS1.08-85/65-K

CHLS1.44-85/65-K

CHLS1.80-85/65-K

CHLS2.20-85/65-K

CHLS2.80-85/65-K

CHLS3.30-85/65-K

Rated Calorific Value

104kcal

30

45

60

90

120

150

180

240

300

Pressure

Mpa

Atmospheric Pressure

The Thermal Efficiency

%

92%

Smoke crossing

mm

160

160

220

220

330

330

370

370

430

Air system

kw

0.75

0.75

0.9

1.1

1.5

2.2

2.2

3.0

4.0

Induced Draft Fan

kw

2.2

2.2

3.0

3.0

4.0

4.0

5.5

7.5

7.5

Heating area

1800-2500

2700-3500

4500-5500

6500-8000

9000-11000

12000-14000

15000-17000

21000-24000

30000-36000

Hopper capacity

kg

200

300

400

400

500

500

600

800

800

Outlet diameter

mm

89

89

102

102

120

120

140

140

160

Water yield(△t40℃)

T/h

6.5

11

13

19.5

26

32

39

52

65

Weight

kg

1380

1520

1880

2350

2850

3350

3850

4380

6350

Boiler Size(L*W*H)

mm

3100*700*1700

3300*800*1800

3500*900*1900

3800*1000*2070

4100*1100*2240

4400*1200*2390

4700*1300*2550

5300*1500*2850

5900*1700*3100


Product Features

1)Economic energy: based on the characteristics of biomass fuels, the use of cyclones, semi-gasification, oxygen-rich staged combustion technology, the combustion device of whole process purification, specially designed waste heat recovery structure, save every penny for customers,30%-65% less than oil, gas, electric heating boilers.


2)Efficient operation: four vertical plus horizontal boiler return pipe modular structure, the use of suspension combustion, while blowing the hot air into the chamber for combustion, large heating area, full combustion, high efficiency, with professional energy-saving device, the thermal efficiency can reach 92% above.


3)Stability and reliability: no pressure operation, adopt internal structure design, high quality accessories and so on, the boiler operation is stable and reliable, long service life.


4)Simple operation: the boiler is fully automatic control, equipped with automatic feeding system, simple operation.


Installation instruction

water boiler installation

water boiler install


Economic Analysis

Hot water boiler production per hour 60 degrees hot water(starting temperature is 20 degrees) needed for one ton of comparing all kinds of energy.

The following is the cost comparison of various fuels: (RMB)

Fuel

0#Diesel

Natural gas

Electricity

Coal

Biomass pellet

Heat value

10200kcal/KW

8500/kg

860kcal/Nm3

5500kcal/kg

4000kcal/kg

Need fuel quantity

4.5kgs

5Nm3

46kw

11kgs

12kgs

Fuel price

8/kg

4.8/Nm3

1/kwh

1/kg

0.9/kg

Heat conversion rate

88%

95%

100%

70%

90%

Fuel cost(RMB)

36

24

46

11

10.8

Cost saving

22.8

10.8

32.8

0.2


Cost saving%

63%

45%

71%

2%



Product  illustration

boiler manufacturer illustration

hot boiler example


Product Qualification

pellet fired hot water boiler



Deliver, Shipping And Serving


pellet fired hot water boiler3666.png


FAQ

Q1.What Kind of Fuel Can be Used in this Boiler

A:Customer can choose any kind of biomass pellet, including wood pellet, saw dust pellet, straw pellet, corn cob pellet and so on

Q2.Does it Has Protection Device?

A:Yes, it has multiple safety protection device to avoid dangerous during using this boiler. There is automatic stop program and temperature sensor. Every process is monitored and protected.

Q3.How do I install the chimney

A:If you do not know how to install the chimney, please contact us with your landscape drawings. Our engineer will design and support you to install the chimney right.

Q4.Do I have to Install a Dust Collector?

A:Our products are equipped with heat recovery device, there is also a water dust collector. For most customers, there is no need to install an extra device.

Q5.Delivery Time and Shipping Period?

A:Delivery time is depends on the order quantity and our produce schedule. Small orders normally can be shipped out within 7 days.

Shipping period is normally 30~50 days.

Q6.Warranty?

A: 12 months warranty period is provided. We provide free replacement for broken parts (exclude man-made damage)
