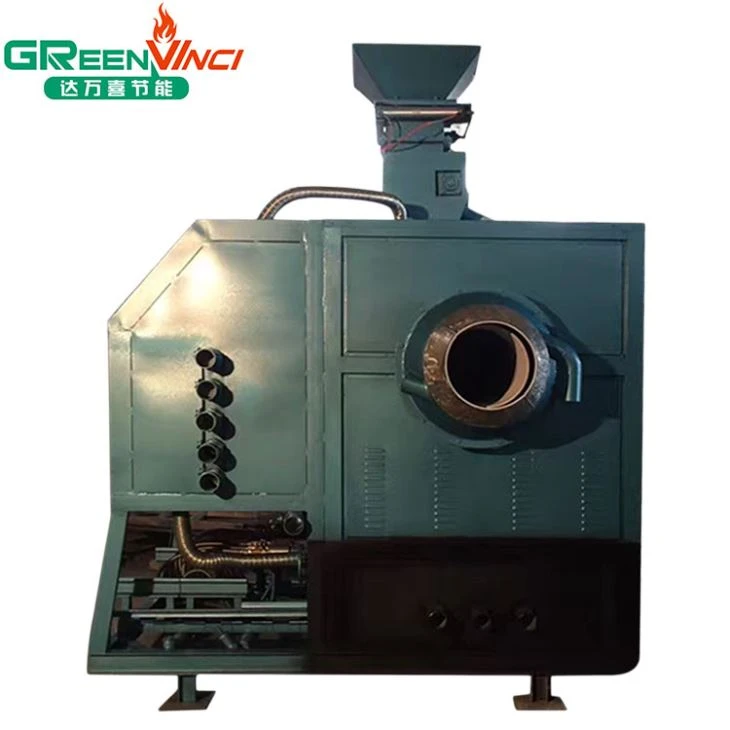

Wood Chips Gasifier

Wood chips gasifier is newest high fuel adaptability burner machine, which is adopt wood chips and irregular fuel as combustion fuel. It greatly reduces the cost for customer to buy the form fuel. And it's best option to replace Oil/Gas/Electricity burner machines to save 30-70% of the fuel cost.

Send InquiryChat Now
Product Details

Product Introduction

Wood chips burner adopts the latest scientific research, which is also one kind biomass particles forming fuels equipment of using the most mature combustion technology and independent innovation. Especially for the use of irregular fuels such as wood chips, the cost saving is beyond 60%. As one of China leading of gasifier burner suppliers, our customized burner machine can not only save the customers cost, but also meet the emission standard, smoke-free, and environmental protection policy. It is widely used in boilers (oil / gas boiler fixed grate fired boilers, coal boiler, pulverized coal),industrial kilns, furnaces, dryer machine, spraying production line and other supporting energy saving.We also can customized and give suitable solution according to customer demands.


Work principle

wood chips gasifier suppliers


Product Parameter

Item No.

GV-30-GGV-45-GGV-60-GGV-80-GGV-100-GGV-120-GGV-180-GGV-240-GGV-360-G

Output Power

Kcal

30×104

45×104

60×104

80×104

100×104

120×104

180×104

240×104

360×104

Efficiency

%

90%

Applicable Fuel


biomass/wood chips/wood pellets etc.

Fuel Consumption

Kg/h

104

156

208

278

347

417

625

833

1250

Power Consumption

KW

1.9

2.1

3

3.5

4.5

5.4

6

8

12


wood chips gasifier1287.png


Product Features

1) Good insulation properties

The chamber is the key parts of the burner, it always suffer a high temperature of about 1000 ℃.We use imported special high temperature material (can stand 1,800-degree heat) . And adopt advanced production technology, its multi-protection, not only to ensure the quality of the burner, but also improves its heat efficiency .The heat efficiency is up to 92% while burner surface temperature close to room’s temperature.

2) Quick fire up, high efficiency

The device uses a streamlined design of the fire, the burner fire out without resistance, higher combustion efficiency. And unique direct-fired semi-gasification combustion with swirl secondary air supply to make 2nd combustion, greatly improving its thermal efficiency.

3) PLC control and VFD control of feeder and blower

Feeding speed and air supply controlled by VFD .Simply input the required temperature, then feeding and blower ratio will be set automatically.

4) Unique feeding system design

Flexible power transmission, smoothly conveying, easy maintenance and fir back prevent.

5) High temperature resistance

Burner tube material is special stainless steel, heat-resistant temperature up to 1100 degrees, long use time (generally the ordinary stainless steel or seamless steel pipe, only can stand 400-800 degrees and short use time).


Production Details

wood chips gasifier3144.png


Economic Analysis

Fuel name

Diesel

Gas

Electricity

Biomass

Heat Value

10200kcal/kg

8500kcal/m3

860kcal/kw

4000kcal

Price

8RMB/Kg

4.5RMB/M3

1.1RMB/Kwh

1.1RMB/Kg

Burning consumption

65kg

76.9m3

780kw

165kg

Fuel costs

520RMB

346 RMB

856 RMB

182 RMB

Biomass fuel efficient than

65%

47%

79%



Conversion program

wood chips gasifier process


Product Qualification

biomass top supplier


Deliver, Shipping And Serving

wood chips gasifier3709.png


FAQ

Q1. What's the use life of your biomass burner?

A: 5years if you operate obey our operation manual
Q2. What's the consumption per hour of your burner?

A: This is comply with the model you choose, details pls refer our catalog.
Q3. Which material do you use?

A: New high-temperature composite materials, like refractory powder, castable material. durable for use.
Q4 What's your combustion principle?

A: Suspension combustion, half fuel half air, burn furthest can up to 95% or more.
Q5.How about the ignition system?

A: Automtic system,  diesel & petrol either is ok.

Q6.How much time to install the machine?

A: It's easy for our technicians, it depends on the equipment that you need.

Q7. What kind of material our gasifier use?

A: Rice husk, wood chips, saw dust, straw, nearly all of the biomass material can be the fuel of our gasifier.

Q8.Is there any requirement for the raw material?

A: our gasifier needs material as follow: size<20mm  moisture<20%.
