Production Introduction
GreenVinci aluminum casting machine for ceiling fan rotor is the most advanced and efficient ceiling fan rotor casting machine.
The working process of aluminum casting machine for ceiling fan rotor:
Introduction of aluminum casting machine for ceiling fan rotor：
aluminum casting machine for ceiling fan rotor is a centrifugal casting of aluminum and Aluminum Alloy molding machine. The liquid metal enters into the mold through the high-speed rotation of the manipulator, the liquid metal centrifugal movement full of casting and casting forming technology and method, the free surface of the metal centrifugal motion can be well formed and full of casting the casting in the radial direction, suitable for ceiling fan rotor cast aluminum production efficiency
Aluminum casting machine for
ceiling fan rotor
Metal casting machine for ceiling fan rotor
centrifugal casting machine for ceiling fan rotor
Specification of aluminum casting machine for ceiling fan rotor:
1) The captain 1650* wide 1300* high 1350mm .
2) Drive energy: electric power, voltage 380V + -10%, frequency 50HZ + -3% (or customized).
3) Power: hydraulic system 4kw, centrifugal rotation system 7.5kW, a total of 11.5kw.
4) Cooling mode: water cooling, (can use circulating water).
5) Open and close mode: hydraulic lift (automatic adjustment according to the thickness of the rotor plate ).
6) Efficiency: 12 seconds /pcs.
7) Speed: 1450r/min (according to customer requirements).
8)Mould size acceptance: ≦Φ300MM , High 150mm (Acceptance of ceiling rotor height <20MM ). This machine is guaranteed for 1 years, no wearing parts (such as seals)
inner mould of casting machine
centrifugal casting machine for ceiling fan rotor
finished product of rotor
inside structure of casting mahcine
Feature of aluminum casting machine for ceiling fan rotor:
Centrifugal die casting machine PK traditional machine :
(1) Capacity can be increased 3-4 times.Traditional die casting generally requires two workers to operate, and it takes about 36 s to produce 1PC rotor, while using our centrifuge only takes 12-15s and only one worker to operate, so the labor cost can be greatly saved.The production capacity is about 200-250pc per hour, and 5,000-6000pc per day 24 hours. Some skilled workers can produce one rotor in 10S and 7,000 rotors per day.
(2) The qualified rate of the product is higher, up to 99.9%.
(3) Equipment investment is low. There are about 28570 USD to 42860 USD for pressure die-casting machines, and our centrifugal die casting machine only need 1/3 of the cost .
(4) Low after-sales maintenance costs, almost no after-sales costs.Only need to replace some sealing rings , belt, bearing regularly
Different type design of aluminum casting machine for ceiling fan rotor:

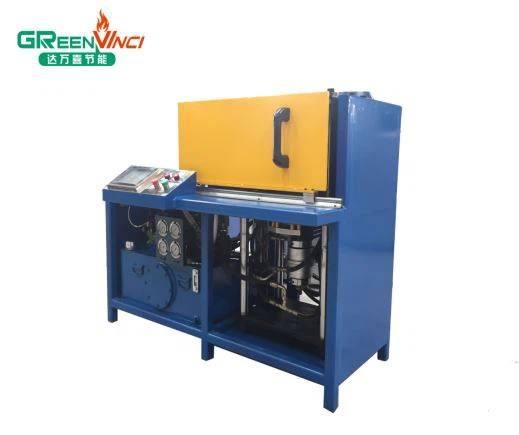

casting machine for rotor
metal casting machinery
aluminum casting machine for rotor
