Greenvinci 3 million Kcal biomass gasifier burner connected to biomass manual boiler in Taishan to save the foam products factory.
Before transformation:
Original boiler working condition: original single drum vertical manual furnace DZL4-1.25 using bark, board wood, industrial wood waste with 30~40% water content
The original problem: frequent black smoke, high labor intensity, the boiler was messy;
 burning directly |  messy site |
|
barkThe first transformation:
Using wood chip burner produced in Fujian, the output power could not meet the continuous production of steam demand;
manufacturers must use high-cost particles and dry wood chips, and there was white smoke rose from the burner;

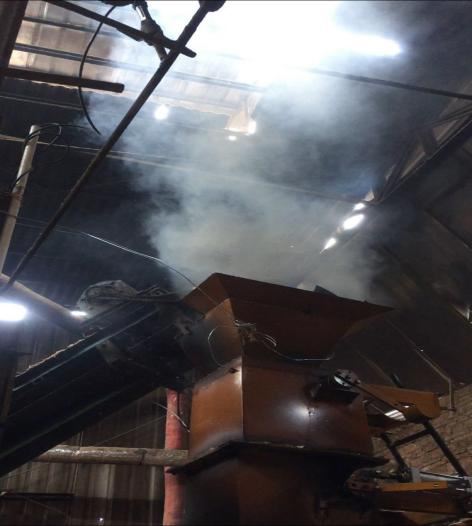

 wood chips burner |  after using |  caused white smoke |
Analysis: The burner only uses one fan to supply air, the circuit control is relatively simple, and the heating surface of the burner is small (the heating space of the same model is only 50% of our product). There were many minor problems within one month after installation
The second transformation:
After detailed calculation, using Greenvinci 3 million kcal biomass gasifier burner. In the case of burning bark fully, can meet the pressure of more than 0.7Mpa, steam flow of about 3 steam tons to meet customer production needs.
Results: No black smoke, improve the air environment ;
reduce 1 boiler operator, Reduce the burning amount of pellet and directly reduce steam costs.
 biomass gasifier burner |  auto feeding |  fuels |
Green solution to energy saving, choose Greenvinci.
