The new generation of multi-functional plant gasifier stove consists of a barrel, a purification device, a pipe, a stove head and the like. The stove device system itself has the functions of plant raw material gasification, gas purification, and automatic separation. It adopts a tar-free design scheme, which is clean and hygienic, and does not block the cooker due to tar during use.
When a large amount of carbon monoxide and hydrogen are generated by combustion in the fuel input cylinder, the automatic gas introduction and separation system performs a procedure for purifying tar, soot, and water vapor through the purification device, thereby generating a high calorific value combustible gas, transporting it to the stove head through the pipeline, combustion is quite complete, and the internal refractory layer is designed with a dedicated liner to ensure a service life of more than ten years.
Technical Parameter
| Parameter of the biomass gasifier | ||||
| Manual discharge | ||||
| Item No. | GV-120-G | GV-180-G | GV-240-G | GV-360-G |
| Output Power(Kcal) | 120×104 | 180×104 | 240×104 | 360×104 |
| Applicable Fuel | wood chips,pellet | |||
| Voltage | 380V | |||
| Feeding system | Pneumatic | |||
| Cleaning way | Manual/Auto | |||
| Power Consumption | 12KW | 14.1KW | 16KW | 17KW |
| Fuel consumption(h) | 300kg/h | 450kg/h | 600kg/h | 900kg/h |
| Size | 2036*2400*3058mm | 2236*2600*3058mm | 2396*2800*3158mm | 3103*2340*3354mm |
| Gross weight | 4000kg | 4500kg | 5000kg | 10200kg |
| Nozzle from ground floor | 1252mm | 1252mm | 1252mm | 1416mm |
| Nozzles dia | 440mm | 500mm | 560mm | 596mm |
| Chamber temperature | ≤900degree | |||
| Flame temprature | ≤1100 degree | |||
| Nozzle material | 310s/316 SS | |||
| Control system | Frequency conversion, automatic constant temperature, touch screen box | |||
| Gasification furnace | High temperature - resistant corundum cement in one pouring molding | |||
| Feeding system | belt conveyor | |||

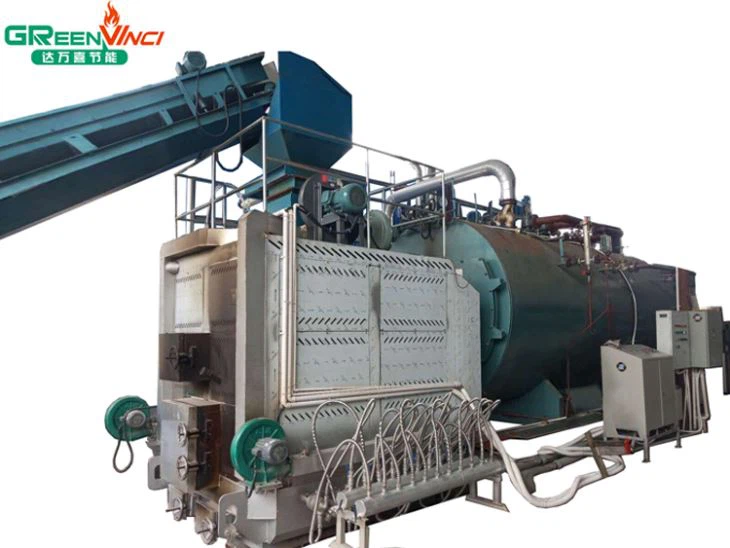

Product display
System Replacement
We are dedicated in system transformation and replacement.Our engineering team will serve oversea after selling.Besides,manual guide and videos would be provided for using.

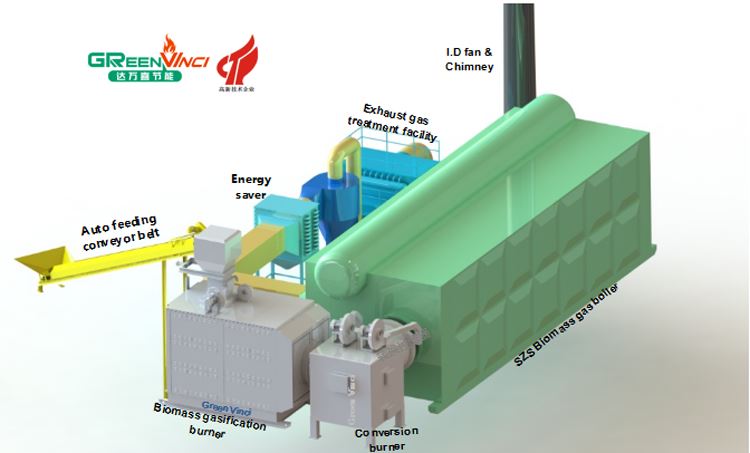

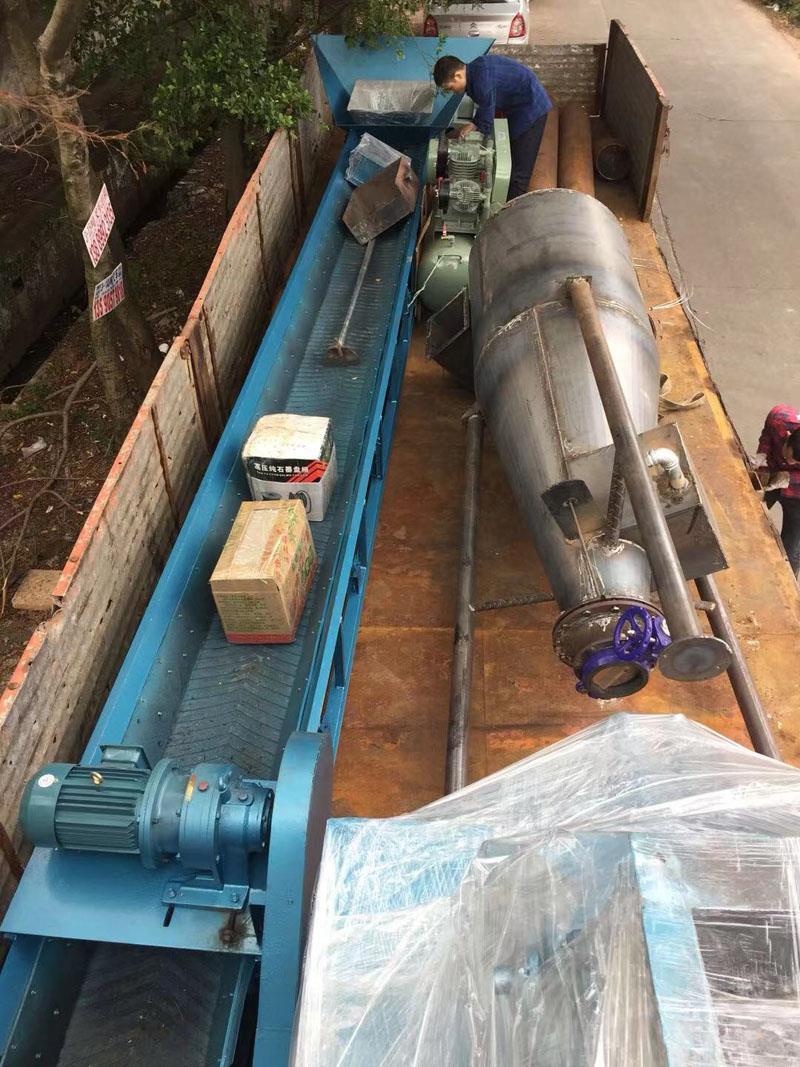

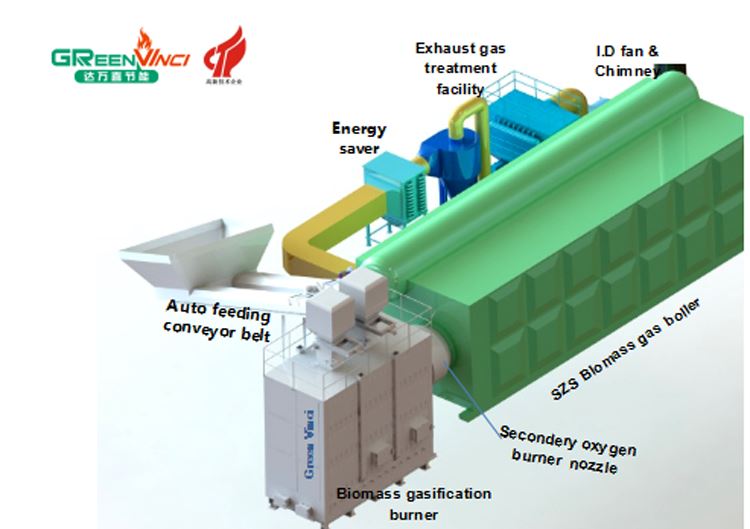

Pictures below are part of system installation.
Customer Visit
Our service
1. We assess your needs
We would like to have an in-depth understanding of your industrial processes and your specific needs for energy and availability of biomass waste. Or are you probably moving from fossil fuels to biomass to reduce costs and ecological footprint? In this case, we adjust our energy plants to accept multiple solid fuel options.
2. We share our global experience.
GreenVinci has completed projects in many industries, sometimes using challenging fuel and fuel mixtures in remote areas, or using complex energy media combinations in a factory. We know how to manage technical risks and provide you with a unique perspective
