Product Description
‘GV-G’,’GV-AG’ biomass burner series is made by GREENVINCI company,which aims at providing stable energy,low maintenance rate and auto-cleaning service in one equipment.Meanwhile, our pyrolysis gasifieradopts independent developed technology and gains some unique practical patents. What is more,our company has obtained the redundancy of ‘GUANGDONG HIGH-TECH PRODUCT’ .Especially our product,it has been used in over 100 boilers and the number of supporting projects.
Technical Parameters
| Parameter of the biomass gasifier | ||||
| Auto discharge | ||||
| Item No. | GV-360-AG | GV-480-AG | GV-600-AG | GV-720-AG |
| Output Power(Kcal) | 360×104 | 480×104 | 600×104 | 720×104 |
| Applicable Fuel | wood chips,pellet | wood chips,pellet | wood chips,pellet | wood chips,pellet |
| Voltage | 380V | 380V | 380V | 380V |
| Feeding system | Pneumatic | Pneumatic | Pneumatic | Pneumatic |
| Cleaning way | Manual/Auto | Manual/Auto | Manual/Auto | Manual/Auto |
| Power Consumption | 24.7 KW | 29.2 KW | 43.8 KW | 43.8 KW |
| Fuel consumption(h) | 900 kg/h | 1200 kg/h | 1500 kg/h | 1800 kg/h |
| Size | 3103*2888*3584mm | 3303*2888*3584mm | 3703*2888*3864mm | 3903*2888*3884mm |
| Gross weight | 11600 kg | 12200 kg | 15000 kg | 16500 kg |
| Nozzle from ground floor | 1646 mm | 1666 mm | 1676 mm | 1691 mm |
| Nozzles dia | 596 mm | 636 mm | 676 mm | 706 mm |
| Chamber temperature | ≤900 ℃ | ≤900 ℃ | ≤900 ℃ | ≤900 ℃ |
| Flame temprature | ≤1100 ℃ | ≤1100 ℃ | ≤1100 ℃ | ≤1100 ℃ |
| Nozzle material | 310s/316 Stainless Steel | 310s/316 Stainless Steel | 310s/316 Stainless Steel | 310s/316 Stainless Steel |
| Control system | VFD, auto constant temperature, touch screen box | Frequency conversion, automatic constant temperature, touch screen box | Frequency conversion, automatic constant temperature, touch screen box | Frequency conversion, automatic constant temperature, touch screen box |
| Gasification furnace | High temp- resistant corundum cement in one pouring molding | High temp- resistant corundum cement in one pouring molding | High temp- resistant corundum cement in one pouring molding | High temp- resistant corundum cement in one pouring molding |
| Feeding system | belt conveyor | belt conveyor | belt conveyor | belt conveyor |
System Introduction
1>Actual auto cleaning discharging system.It runs continuously for 24 hours, and it does not need to stop the machine for ash cleaning in the middle,which ensures the continuous stability of production.

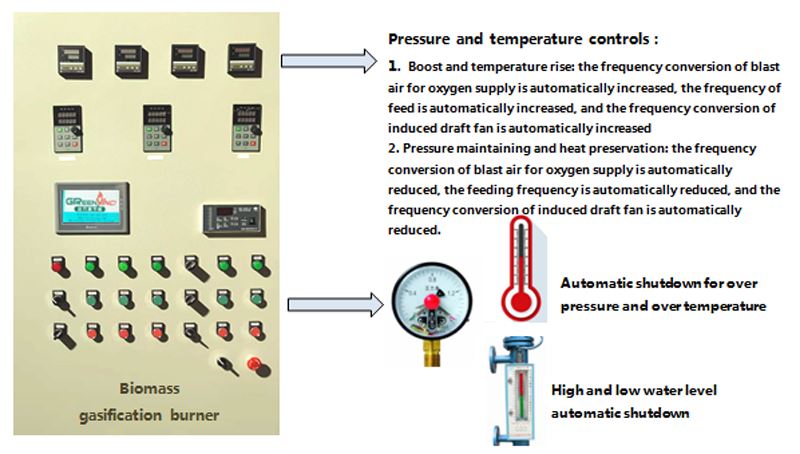

2>Automatic constant pressure, constant temperature, safety interlock protection: The equipment electric control cabinet is connected with the pressure gauge of the boiler and kiln, and the temperature gauge. The pressure and temperature are automatically controlled by the fire at different stages. At the same time, it can be connected with the boiler control cabinet to realize over-pressure, ultra-low ultra-high water level shutdown, and the safety guarantee is fully in place.
3>Intelligent automatic control system: PLC, frequency conversion, touch screen control, can be connected with boiler electric control cabinet, boiler induced draft fan, feeding conveyor belt, automatic slag connection and linkage control. Through the liquid crystal display, the operation status of each part can be visually displayed, and the operating parameters can be adjusted according to the actual conditions of the working conditions, which is convenient and easy for the running training personnel to get started.
4>Automatic feeding system: conveyor belt conveyor and electric control box linkage control to achieve automatic feeding. The operator only needs to keep the silo with biomass fuel, and the whole set will automatically control the feeding speed and control the firepower according to temperature and pressure. 2-15 tons of boilers need only 1-2 operators per shift.
KCal with different raw material
Enterprise | Raw material | Yuan/tons(RMB) | KCal | mositure content% |
GrennVinci | Redwood pellets | 1000 | 4200 | 9.1 |
Oak granules | 950 | 4015 | 9.5 | |
Site crushing wood | 480 | 3300 | 16.7 | |
Briquette | 850 | 3800 | 10.12 | |
Redwood chips | 650 | 3873 | 15.11 | |
Oak block | 600 | 3500 | 18.2 | |
Miscellaneous wood chips | 450 | 3047 | 31 | |
Miscellaneous wood pellets | 900 | 3950 | 7.25 |
Certification
Pictures below are part of our redundancy.
Environment Statistics
In order to meet ‘green and non-pollution’ concepts,all our products are environmentally friendly and statistics are no doubt that meet international standards and are available in many regions.
