Natural Gas Steam Generator
In industrial production, natural gas is still leading a prominent role. The below natural gas steam generator is comparatively a low pressure steam generator than traditional steam generator which is natural gas fueled. Plants that are looking for a steam output include and above 500KG/H with natural gas fueled, GreenVinci can surely help you process mass production with environmental-friendly, intelligent and money-saving steam generator. Please check the below specifications and know our machine functions!
Components of Natural Gas Steam Generator
Technical advantages of Natural Gas Steam Generator
1. Fully automatic operation: using the microcomputer LCD control system, one key to open, only need to install the water, electricity and smoke exhaust in place, the generator enters the fully automatic operation state, no professional stoker is needed, saving labor
2. Adequate safety guarantee: The equipment is equipped with high-quality pressure controller, safety valve, and safety facilities such as overpressure alarm, low water level detection and overheating protection.
3. Energy saving and high efficiency: the thermal efficiency reaches 95%, the steam production is sufficient, and the steam is discharged in 5~10 minutes. Production, steam volume and steam dryness have been strictly tested to meet national and industry standards.
4.Environmentally friendly and clean: no smoke, no smell, no noise, low carbon and environmental protection
5. Suitable for a variety of fuels: natural gas, liquefied gas, diesel, etc.
6. Low pressure: the pressure of the Natural Gas Steam Generator only reach 0.7MPa, which differs from the traditional boiler and present a new way for producing steam.
Parameter of Natural Gas Steam Generator
| Model | Rated evaporation | Rated Working Pressure | Rated Steam Temperature | Full Load Consumption | Size | Weight | Working Voltage | Steam Diameter | Safety Valve | Water Inlet | Sewage outfall | Funnel Outlet | |
| kg/h | Mpa | ℃ | NG | diesel | L*W*H（mm） | kg | V | DN(mm) | DN(mm) | DN(mm) | DN(mm) | mm | |
| m³/h | kg/h | ||||||||||||
| SZS1.0-0.8-Y（Q）-J | 1000 | 0.8 | 175 | 78 | 64 | 3750*2220*2500 | 4350 | 380 | 40 | 25 | 25 | 40 | φ219 |
| SZS0.5-0.8-Y（Q）-J | 1000 | 0.8 | 175 | 78 | 31 | 2550*1650*2200 | 1250 | 380 | 40 | 25 | 25 | 40 | φ219 |
| SZS1.0-0.7-Q | 1000 | 0.7 | 170 | 78 | 66 | 2800*2100*2430 | 1230 | 380 | 40 | 25 | 25 | 40 | φ219 |
| SZS0.5-0.7-Q | 500 | 0.7 | 170 | 40 | 32.8 | 2100*1100*1600 | 1035 | 220/380 | 40 | 26 | 26 | 40 | φ219 |
| SZS0.3-0.7-Q | 300 | 0.7 | 170 | 23 | 18.5 | 1960*960*1960 | 732 | 220/380 | 25 | 25 | 15 | 25 | φ219 |
| LSG0.2-0.7-Y（Q） | 200 | 0.7 | 170 | 15 | 13 | 860*820*1700 | 152 | 220/380 | 25 | 25 | 15 | 25 | φ219 |
| LHS0.1-0.7-Y（Q） | 100 | 0.7 | 170 | 7.8 | 6.4 | 880*910*1980 | 1100 | 220/380 | 20 | 20 | 15 | 25 | φ114 |
| LHS0.08-0.7-Y（Q） | 80 | 0.7 | 170 | 6.2 | 5.1 | 880*910*1850 | 800 | 220/380 | 20 | 20 | 15 | 25 | φ114 |
| LWS0.05-0.7-Y（Q） | 50 | 0.7 | 170 | 3.9 | 3.1 | 760*820*1680 | 650 | 220/380 | 20 | 20 | 15 | 20 | φ114 |
| DLS0.03-0.7-Y（Q） | 30 | 0.7 | 170 | 2.3 | 1.8 | 660*660*1620 | 650 | 220/380 | 15 | 15 | 15 | 20 | φ114 |
Our case

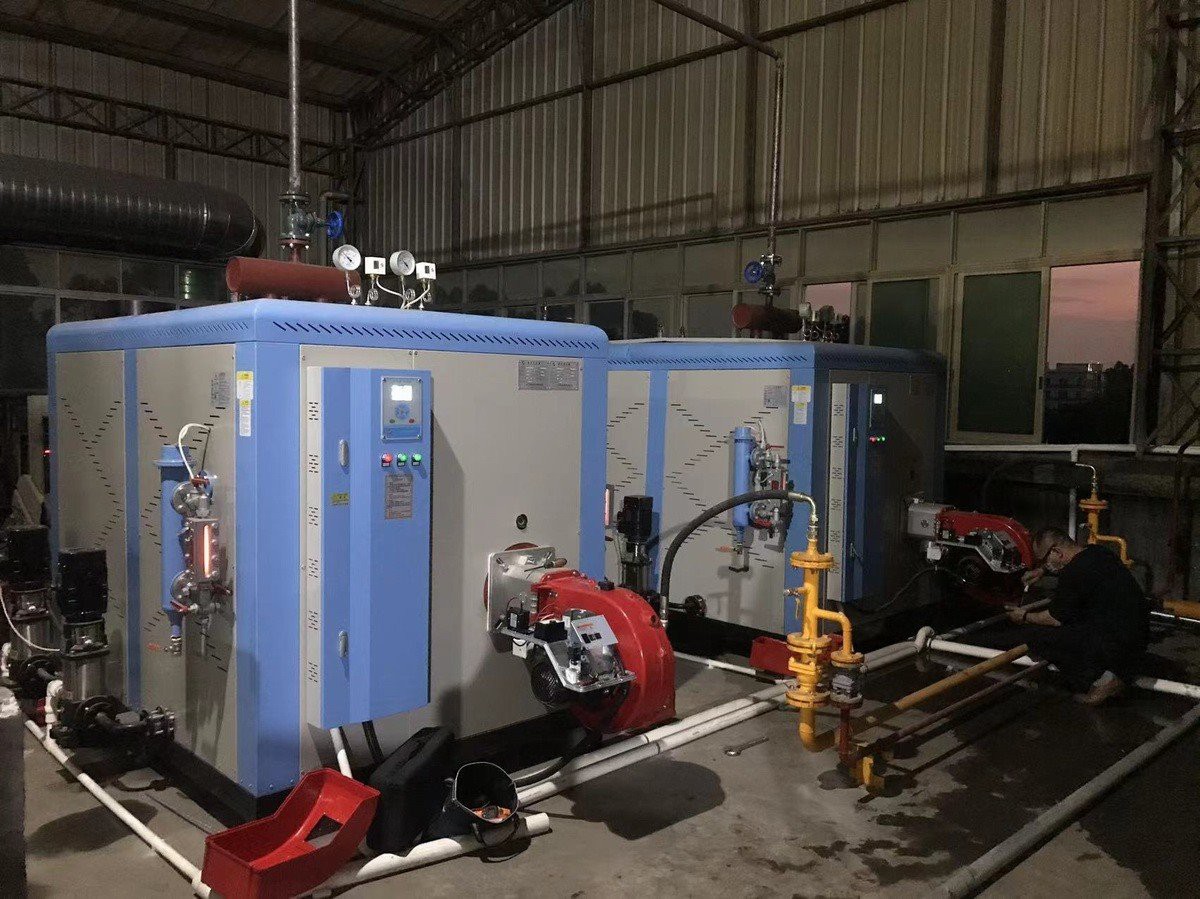

10 * 500kg Gas steam generators used in paper mills
Natural Gas Steam Generator Ready to Ship
We are one of the powerful manufacturer and supplier in Southern China. Base in a port nearing city, it's very convienient for us to provide shipment service. Our R&D department has devoted to improve the product quality and design only to fulfill industry need.
FAQ
Q1.Application of a Natural Gas Steam Generator
A: Normally can meet customers' need for pure and clean steam. Also if you need a low pressure running atmosphere and fast steam output, can consider this type.
Q2.What Kind of Ceitificate do you have for this Natural Gas Steam Generator?
A: Natural gas, LPG, oil.
Q3.Does it Has Protection Device?
A:Yes, it has multiple safety protection device to avoid dangerous during using this boiler. There is automatic stop program and temperature sensor. Every process is monitored and protected.
Q4.How do I install the chimney?
A:If you do not know how to install the chimney, please contact us with your landscape drawings. Our engineer will design and support you to install the chimney right.
Q5.Do I have to Install a Dust Collector?
Our products are equipped with heat recovery device, there is also a water dust collector. For most customers, there is no need to install an extra device.
Q6.Delivery Time and Shipping Period?
Delivery time is depends on the order quantity and our produce schedule. Small orders normally can be shipped out within 7 days. Shipping period is accordingly 30~50 days.
Q7.Warranty？
We provide a 12 months warranty period. We provide free replacement for broken parts (exclude man made damage).
