Product Introduction
Efficient induction furnace for melting metal is an electric furnace specially designed for the melting industry.
Melting: aluminium, copper, zinc, magnesium etc. and alloy melting
Application: making ingots and die casting machine
Advantages: fast heating, good heat preservation, high efficiency, stable and convenient operation and low maintenance cost.
Product Parameter
Item No. | Capacity of crucible (KG) | MAX melting capacity (KG/H) | Aluminum supply for die casting (KG/H) | Power Consumption/1T aluminum (KW/T) | Installation Power (KW/H) | Dimensions (CM) |
GV-200-EI | 200 | 100 | 50-80 | ≤385 | 45 | Φ130*H95 |
GV-330-EI | 330 | 140 | 80-120 | ≤385 | 60 | Φ130*H113 |
GV-500-EI | 500 | 200 | 130-180 | ≤385 | 90 | Φ142*H116 |
GV-650-EI | 650 | 250 | 160-220 | ≤385 | 110 | Φ146*H120 |
Induction furnace VS electric resistance furnace
1. Energy saving: Induction furnace saving 30% than resistance furnace
2. Temperature rising: 2.5h VS 5h for melting 1 ton aluminum at first time
3. Safety: body safely touch VS accident burns and scalds
4. Maintenance cost: almost no VS high (resistance wire)
Production Details
Operation

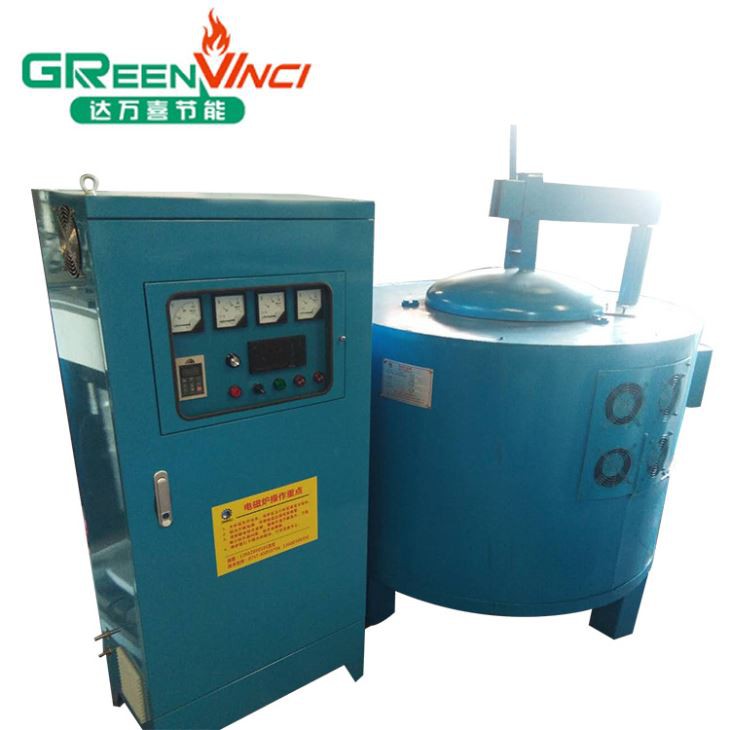

Greenvinci induction furnace is a crucible heated by eddy current produced by induction coil, which is transformed into heat energy by electromagnetic induction heating controller and the principle of electromagnetic induction heating.
The electric control cabinet is the core of the whole system. It operates the whole process of the system with PLC controller, adopting German imported components which has more stable performance. It has such settings as emergency stop, fault alarm, temperature control and so on and it can be operated remotely on the PC terminal and is easy to operate.
Applications
Product Qualification
Our service
<12 months warranty after acceptance. Free service for quality defects during the warranty period.
< Free technical guidance of installation commissioning services.
<Lifetime discount offers vulnerable parts and related consumables, and assist in equipment maintenance and spare parts replacement.
< Free technical training for operators; food, accommodation, transportation costs by customers.
<Technical guidance in different occasions.
