Introduction
GreenVinci Intelligent energy saving gas fired Tilting aluminum scrap melting furnace is a kind of metal melting and holding furnace. It can smelt the aluminum scraps and alloys and instant the liquid temperature.
Specifications
| Product name | Tilting Aluminum Scrap Melting Furnace | |
Model | IEG-500 | Remarks |
Capacity | 500 Kg （Al liquid） | Based on the distance between liquid level and top surface of 75mm |
Holding temperature | 680℃～1250℃ | |
Temperature control | ±10℃ | |
Surface temperature | 48℃ at average | Excluding combustion port, furnace door and drain port |
Melting speed | 300kg/h | The crucible contains not less than 1 / 3 of liquid |
Tilting radius | 90 degree | |
Height of liquid intake | 1.5m | |
Size（L*W*H） | 2000mm*1800mm*1650mm | |
Weight | 3900KG | |
Melting mode | Melting and holding | |
Chamber temperature | 1300℃ | |
Fuel | Natural gas | |
| Mattress Size | Mattress Size/cm | Box Size/cm |
| Single | 92*188 | 37*37*102 |
| King-Single | 107*203 | 37*37*117 |
| Double | 138*188 | 37*37*148 |
| Queen | 153*203 | 37*37*163 |
| King | 183*203 | 37*37*193 |

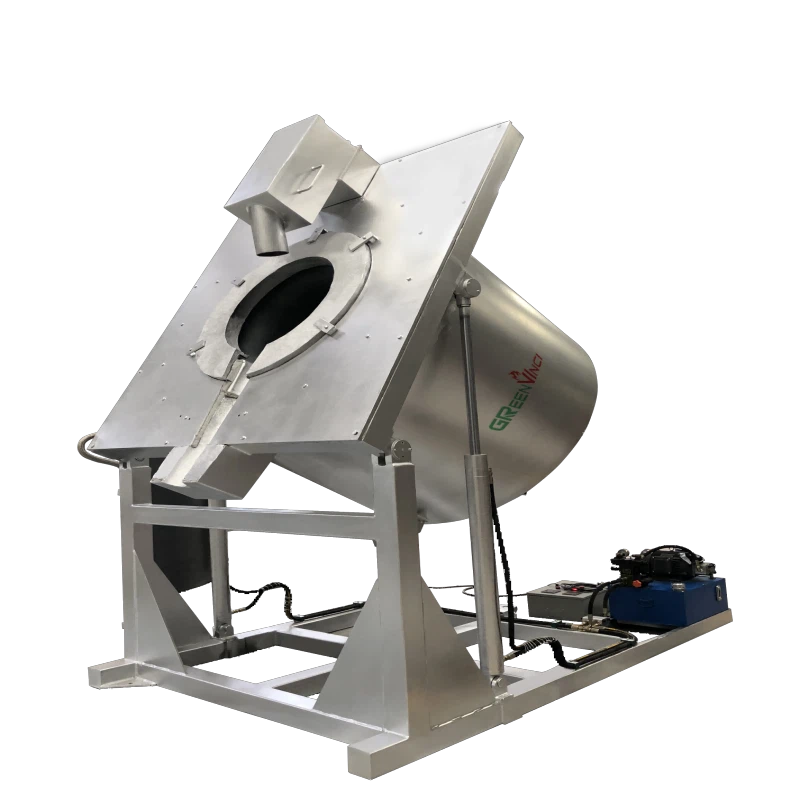

Structure
GreenVicni Tilting Aluminum Scrap Melting Furnace use high quality material and with strong sturcture to ensure the furnace can have longer service life and stable operation.
1. Outside structure and material
Steel plate shell and reinforced with profile steel. The top plate of furnace body is made of heat-resistant cast steel. The crucible cover is made of steel plate and stamped into the shape of head. Lined with ceramic fiber blanket.
2.Inner structure
Tilting Aluminum Scrap Melting Furnace is mainly made of ceramic fiber thermal insulation materials and refractory bricks.
3.Crucible pressure plate
Cast iron plate for fixing crucible.

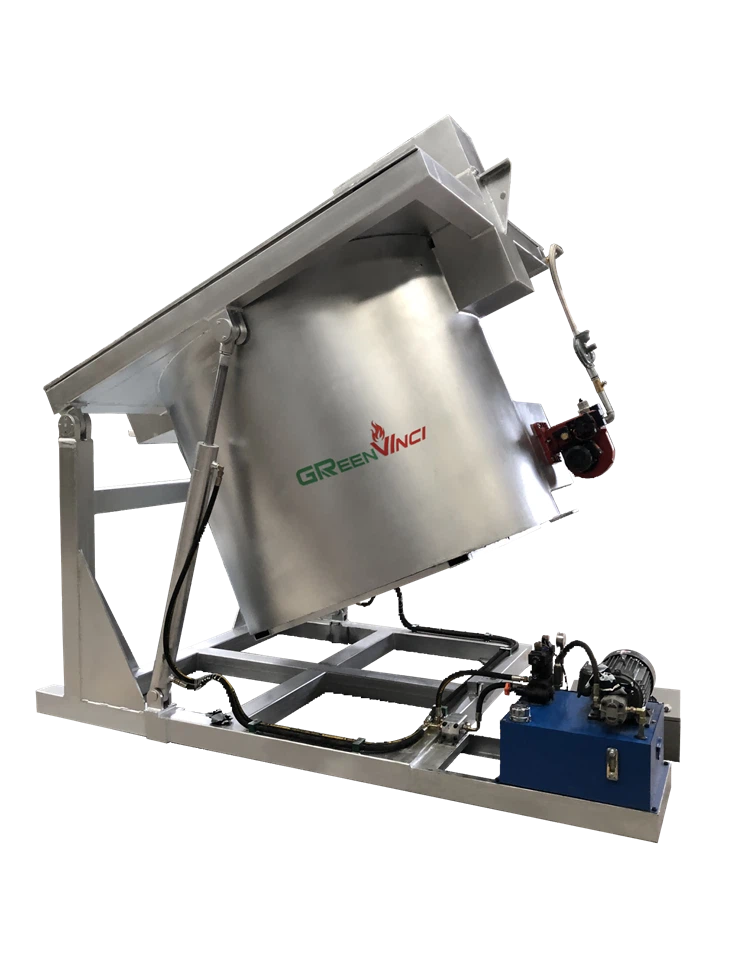

4.1 set of furnace dumping mechanism

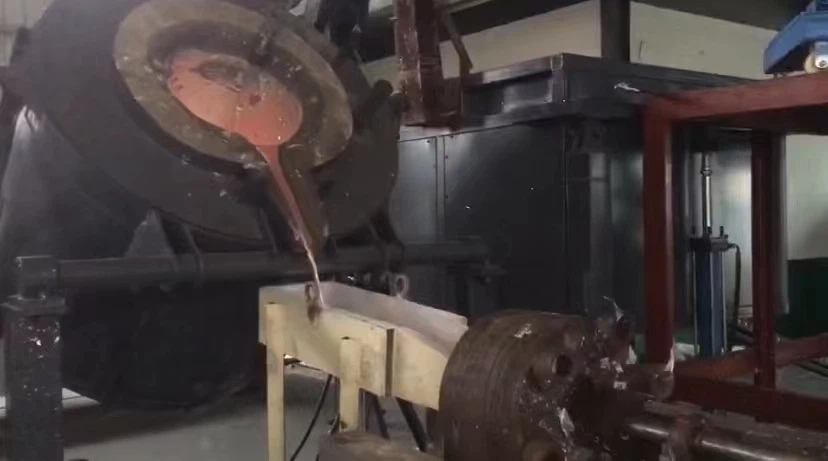

Hydraulic mechanical transmission is adopted to change the position of furnace body. Equipped with furnace locating pin. Install the dump reducer drive below. Soft limit and limit hard limit are set to ensure the positioning of furnace and caster.

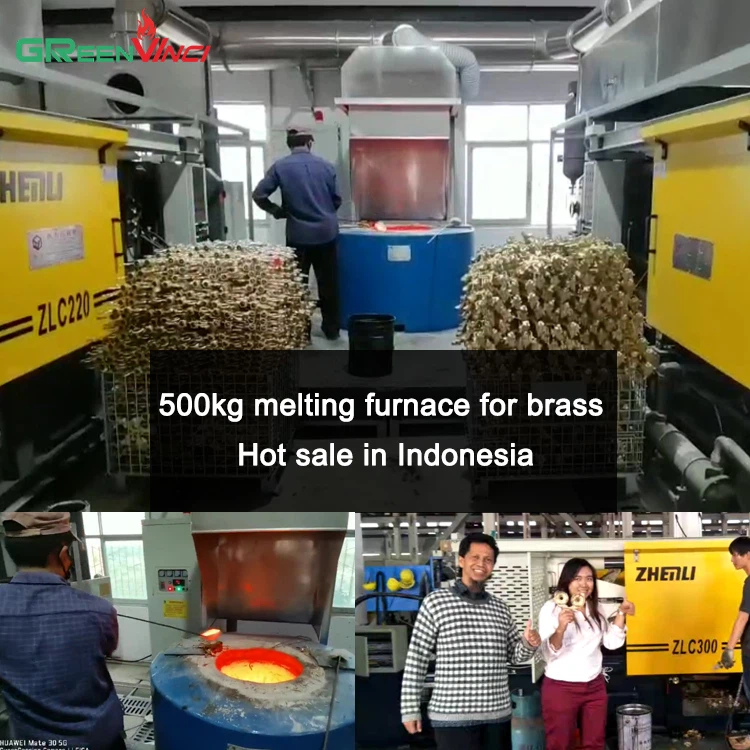

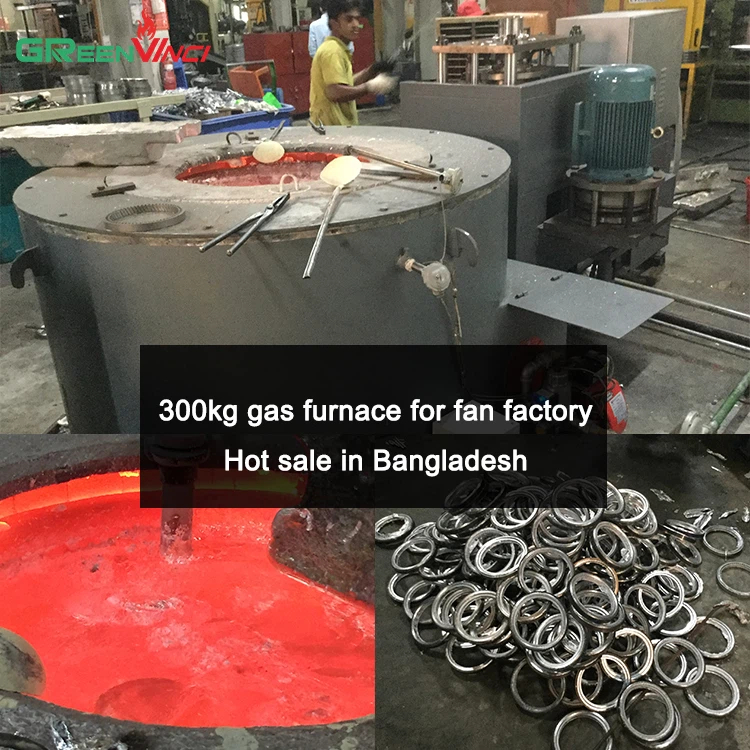

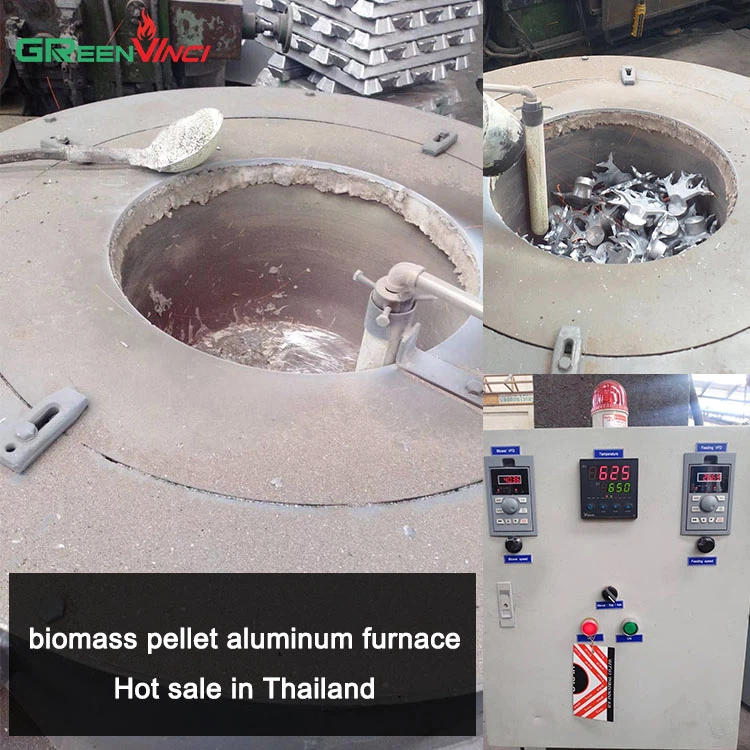

Cases showing

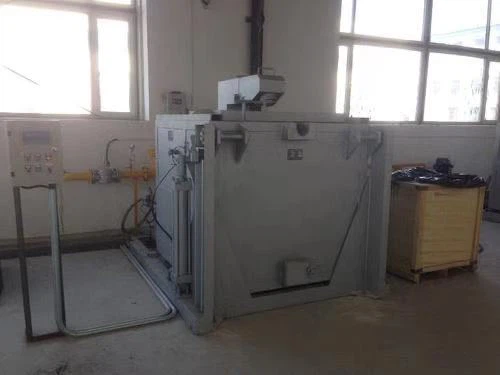

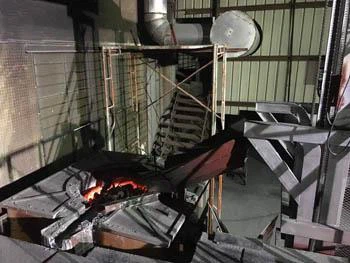

Our Case
Company information
GreenVinci is one of the leading manufacturers and exporters of biomass energy saving equipment in China.
With more than 23 years experience in metal melting field, we have types of metal melting machines. Welcome to consult!
Hope we can help you by our professional teams.
