Product description
Aluminum ingot production process
1. After cleaning the oil and grease of waste aluminum, manually put it into the furnace with a forklift;
2. Ignition for melting furnace .Heat up to 680C, and input appropriate proportion of alloy elements. Heat up to 800C, melt and stir evenly, then fetch samples to the spectrometer for testing.
Every lot of production need to do testing .
3. Put A tool that attracts iron into the furnace by forklift, to suck away the iron in the aluminum water.
4. Put the slag agent into Alu liquid to remove the slag. After slag removed , put the slags into Aluminum ash separation machine , and let the aluminum water and ash separate. The proportion of slag agent and aluminum liquid is 1:500
5.Open the drain valve and the aluminum water flows automatically to the ingot production line After the ingot casting is completed, the ingot stacking robot will stack the ingots, which means the production is completed.

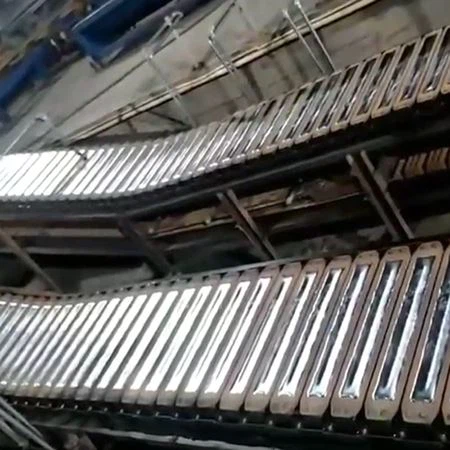

Aluminum Ingot Production Line Machines
The automatic production line usually includes the following steps and machines.
For small scale aluminum ingot production line, we have much simple and economical solution, please feel free to contact us for more detailed proposal.

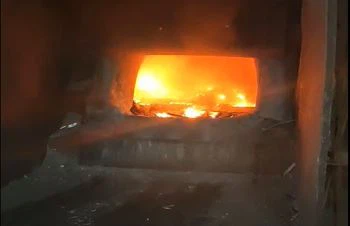

Ignition Iron removing

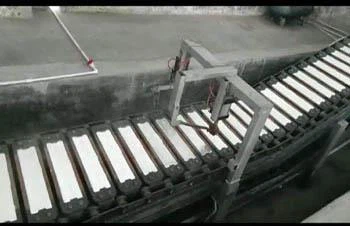

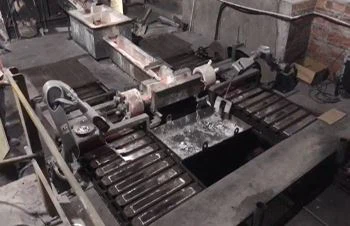

Auto slaging Automatic ingot casting

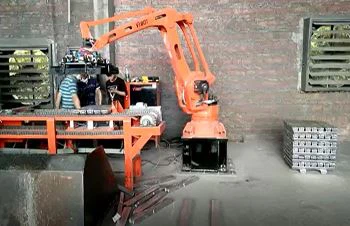

Auto stacking ingot Ash seperation machine
ADC 12 standard in China
Si,Fe,Cu,Mn,Mg, Cr , Ni , Zn , Ti , Ag , Bi , Co, Na , P , Pb , Al
FAQ
1. the Scope of this project ?

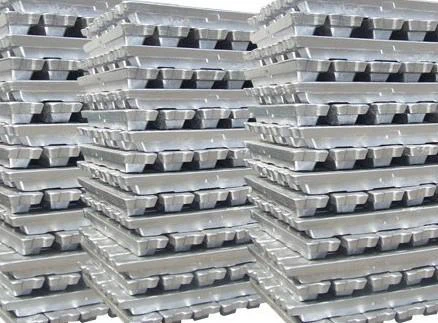

Melt waste aluminum (such as motor housing, engine housing, etc.), through high temperature melting and adding alloy elements to form ADC12 aluminum ingots.
2. Project facilities in need ?( 10T/day, 300 tons per month, working 10-20hours per day.)
A. 1 unit of 5T Alu melting furnace ,
B. Auto ingot system 16M
C. Aluminum ash separation machine 600*600mm
D. Environmental protection dust removing equipment ( Depends on local standard )
E. Robot ingot stacker ( or by manual)
F. Spectrograph
3. Environmental impact in this project
It will produce dust, waste gas and smoke. It is recommended to use cloth bag dust removal according to local environmental protection policy.
4. Worker facilities as its a hot temperature environment
Eye mask, dregs scoop, etc.
Our company
GreenVinci Biomass Energy Co., Ltd. is a high-tech enterprise specializing in energy, environmental protection, energy-saving technology development, product manufacturing and sales.
Established in 2009, we have been insisting to offer green solution for industrial heating system with a team of professionals in the field of boilers, drying, metal melting, biomass industry.
With years of professional production experience and technical strength, a number of production bases have been founded for boilers, biomass gasification burner, industrial solid waste incineration, metal smelting machine, steam generator, hot air generator, hot water boiler, and biomass forming equipment.
In the next three years, we will become the largest exporter of biomass equipment in South China.
