Product Introduction
Eco-Friendly Biomass Wood Waste Burner is especially designed for various biomass fuel to make full use of the wood waste and other biomass eco fuel. It's a kind of burner machine, using semi-gasification technology, so called biomass gasification burner. Widely used in industrial heating projects for boiler, dryer, furnace and so on.
Product Futures
1. Apply to various of biomass wood waste.
biomass wood waste |
construction wood waste |
furniture wood waste |
forest wood waste |
Camphor wood waste |
rubber wood waste |
2. Full Automation

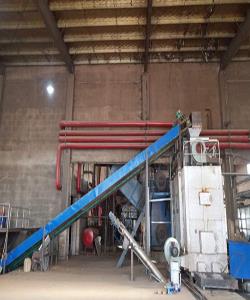

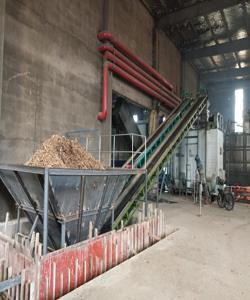

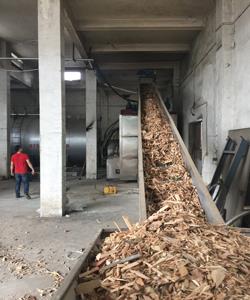

Automatic feeding--belt conveyor to feed the biomass fuel into the chamber of eco-friendly biomass wood waste burner, only need to ensure there is enough fuel in the stock bin, feed every few hours.
|
|
|
Automatic control temperature and pressure--ensure stable power and temperture output to improve the product quality.
Automatic ash cleaning--24 hours working, no stop, no coke.
1 worker can run whole set machine, including burner and boiler or dryer, for 1-15 tons.
Technical parameter
|
Parameter of the eco biomass wood waste burner |
||||
|
Manual ash cleaning |
||||
|
Item No. |
GV-120-G |
GV-180-G |
GV-240-G |
GV-360-G |
|
Output Power(Kcal) |
120×104 |
180×104 |
240×104 |
360×104 |
|
Voltage |
380V (customized) |
|||
|
Feeding system |
Pneumatic |
|||
|
Cleaning way |
Manual/Auto (optional) |
|||
|
Power Consumption |
12KW |
14.1KW |
16KW |
17KW |
|
Fuel consumption |
300kg/h |
450kg/h |
600kg/h |
900kg/h |
|
Size |
2036*2400*3058mm |
2236*2600*3058mm |
2396*2800*3158mm |
3103*2340*3354mm |
|
Gross weight |
4000kg |
4500kg |
5000kg |
10200kg |
|
Nozzle from ground floor |
1252mm |
1252mm |
1252mm |
1416mm |
|
Nozzles dia |
440mm |
500mm |
560mm |
596mm |
|
Chamber temperature |
≤900degree |
|||
|
Flame temprature |
≤1100 degree |
|||
|
Nozzle material |
310s/316 SS |
|||
|
Control system |
Frequency conversion, automatic constant temperature, touch screen box |
|||
|
Gasification furnace |
High temperature - resistant corundum cement in one pouring molding |
|||
|
Feeding system |
belt conveyor |
|||
Applications of eco biomass wood waste burner

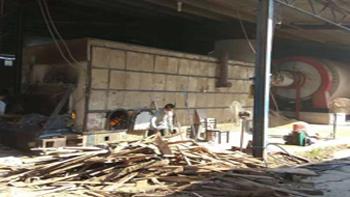

eco-biomass wood waste burner for car film drying, burning furniture wood waste. 1.2 Mkcal

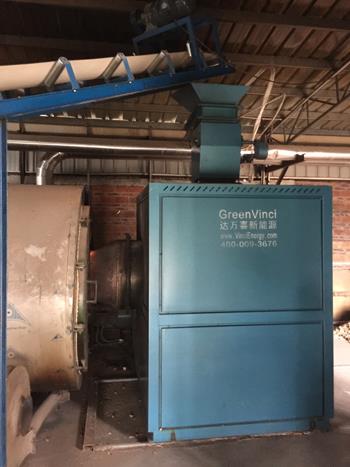

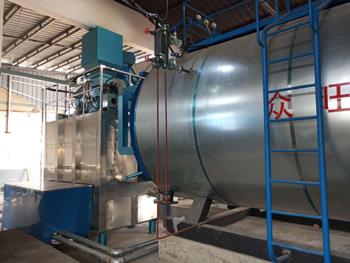

burner for boiler |

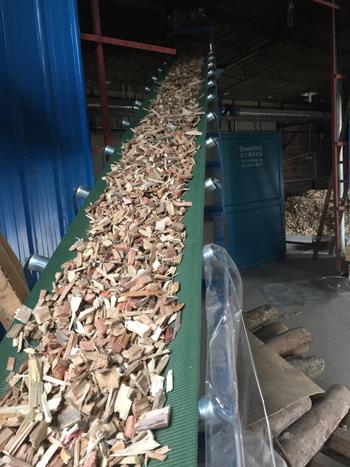

furniture wood waste convey |
eco-biomass wood waste burner for wood powder drying for pellet mill. 3.6 Mkcal
|
|

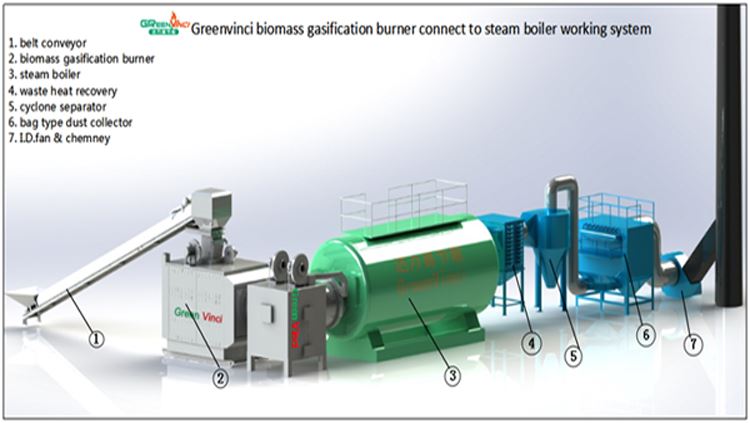

eco-biomass wood waste burner for industrial boiler, 6.0 Mkcal
|
|
Q & A
1. What's the capacity of the biomass burner?
From 0.6--9.0 Mkcal/h (1-15 tons). Customized solution for customers.
2. What's the advantages compare with other suppliers?
(1) Professional air distribution design and control system--higher combustion efficiency
(2) Water-cooling automatic discharge system--24 hours working
(3) Remote PLC Control System
(4) Double frequency conversion
(5) Automatic feeding, no block.
(6) No tar (tar gasifier burning)
(7) Larger burning chamber--full combustion.
3. What kind of cooling system do you have?
Air-cooling for manual discharge burner and water-cooling for automatic discharge burner.
4. How about the after-sales service?
The main body of the machine is guaranteed for 1 year, the nozzle and grate for 6 months. Lifelong low-cost maintenance.
GreenVinci specialize in industrial biomass heating project, offering customized solution for customers.
Welcome to consult.
