Biomass energy Eco-wood gasifier for boiler
Convert any gas or diesel fired boiler for automatic waste wood burning
Make full use of wood waste, biomass to energy to provide heat for industrial boilers.
Wood gasifier for clean combustion with SS310 flame nozzle
 Gasifier attached to a 12 ton boiler |  Gasfier attached to a 10 ton boiler |
• FULLY AUTOMATIC PLC CONTROL
• INVERTER SPEED CONTROL
• MULTI FEEDING DOORS
• CONVEYOR RUNNING TIME
• GASIFIER TEMPERATURE
• NOZZLE FAN & FURNACE FAN SPEED fe
• ASH GRATE OPEN & CLOSE TIMING

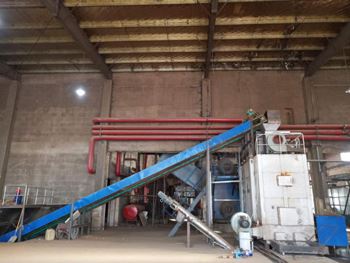

 Conveyor for wood off-cuts |  Wood off-cuts length<200 mm |
A WOOD GASIFIER WITH AUTOMATIC WOOD OFF-CUTS FEEDER WHICH CAN REPLACE ANY EXISTING COMBUSTION BOILER OR HEATER FURNACE THAT BURNS INEFFICIENTLY. IT CAN BE USED TO CONVERT ANY GAS OR DIESEL FIRED BOILERS TO AN AUTOMATIC WOOD FIRED STEAM BOILER WITH CAPACITIES RANGING FROM 1 TON TO 10 TON/HR STEAM BOILER OR FOR HEATING UP A ROTARY DRUM DRYER WITH HEATING CAPACITIES UP TO 3 MILLION KCAL/HR
| Technical Specification of Biomass energy Eco-wood gasifier | ||||
| Auto discharge | ||||
| Item No. | GV-360-AG | GV-480-AG | GV-600-AG | GV-720-AG |
| Output Power(Kcal) | 360×104 | 480×104 | 600×104 | 720×104 |
| Applicable Fuel | wood chips,pellet | wood chips,pellet | wood chips,pellet | wood chips,pellet |
| Voltage | 380V | 380V | 380V | 380V |
| Feeding system | Pneumatic | Pneumatic | Pneumatic | Pneumatic |
| Cleaning way | Manual/Auto | Manual/Auto | Manual/Auto | Manual/Auto |
| Power Consumption | 24.7 KW | 29.2 KW | 43.8 KW | 43.8 KW |
| Fuel consumption(h) | 900 kg/h | 1200 kg/h | 1500 kg/h | 1800 kg/h |
| Size | 3103*2888*3584mm | 3303*2888*3584mm | 3703*2888*3864mm | 3903*2888*3884mm |
| Gross weight | 11600 kg | 12200 kg | 15000 kg | 16500 kg |
| Nozzle from ground floor | 1646 mm | 1666 mm | 1676 mm | 1691 mm |
| Nozzles dia | 596 mm | 636 mm | 676 mm | 706 mm |
| Chamber temperature | ≤900 ℃ | ≤900 ℃ | ≤900 ℃ | ≤900 ℃ |
| Flame temprature | ≤1100 ℃ | ≤1100 ℃ | ≤1100 ℃ | ≤1100 ℃ |
| Nozzle material | 310s/316 Stainless Steel | 310s/316 Stainless Steel | 310s/316 Stainless Steel | 310s/316 Stainless Steel |
| Control system | VFD, auto constant temperature, touch screen box | Frequency conversion, automatic constant temperature, touch screen box | Frequency conversion, automatic constant temperature, touch screen box | Frequency conversion, automatic constant temperature, touch screen box |
| Gasification furnace | High temp- resistant corundum cement in one pouring molding | High temp- resistant corundum cement in one pouring molding | High temp- resistant corundum cement in one pouring molding | High temp- resistant corundum cement in one pouring molding |
| Feeding system | belt conveyor | belt conveyor | belt conveyor | belt conveyor |
For sales inquires, please email us: sales@vincienergy.com or visit : www.greenvinci.com
