Introduction of GreenVinci steam generator type

We are Chinese steam boiler(or called steam generator) manufacturer and supplier in Southern China. In this page, you will see the overall types of our steam generator and their designs. We have biomass pellet steam generator, natural gas steam generator, oil steam generator and electricity steam generator. You may call them steam boiler but they differ from traditional steam boilers. With a lower steam generator price, intelligent control model, easy operate and safe tool, mass production would be much easier! To generate steam under a low pressure by fuel, the steam generator also equipped with water tank, safety valves, pressure meter, water softener, PLC controller and burner chamber. Let's go on checking through details below!



What We Have

Fuel type	Rated Evaporation(KG/H)	Rated Steam Temperature (℃)	Rated Working Pressure(MPa)	Series
BMF(Biomass briquette fuel, coal )	30-1000	170	0.7-0.8	LSG
Natural Gas/LNG/Oil	30-1000	170-175	0.7-0.8	DLS, LWS, LHS, SZS
Electricity	5-300	170	0.7	LDR
Applicable industry: Garment, Food(sea food steaming, wine making, fruit processing) , Heating, Drying, Paper making etc.

Wide range of applicable fuels, choose appropriate fuelsaccording to local energy advantages.

Steam Generator Display

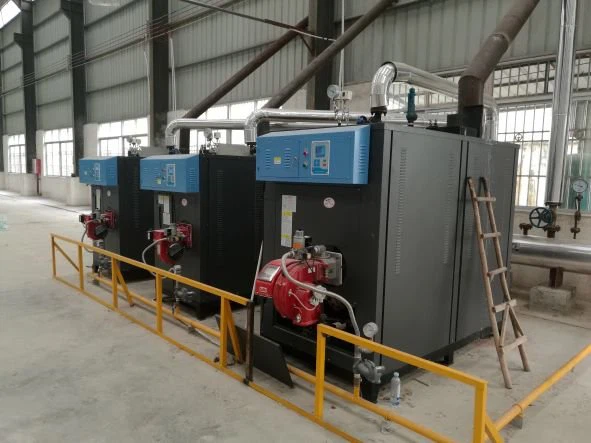

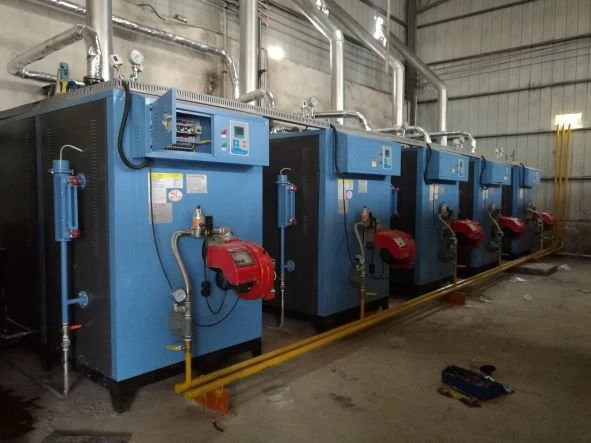

• natural gas steam generator

1.High degree of integration: The boiler main body, sub-cylinder, boiler water sampler, economizer, water pump are integrated, and the main body and auxiliary machines are integrated into the factory, and the installation is very simple.

2. Fully automatic operation: using the microcomputer LCD control system, one key to open, only need to install the water, electricity and smoke exhaust in place, the boiler enters the fully automatic operation state, no professional stoker is needed, saving labor

3. Adequate safety guarantee: The equipment is equipped with high-quality pressure controllers, safety valves, and safety facilities such as overpressure alarm, low water level detection and overheating protection.

4. Energy saving and high efficiency: built-in multi-return heat exchange structure and economizer, the water volume is more than 250L, the thermal efficiency is more than 96%, the steam production is sufficient, and the steam is released in 3~8 minutes. The steam output and steam dryness have been strictly tested to meet the national and industry standards.

5. Environmentally friendly and clean: no smoke, no smell, no noise, low carbon and environmental protection

6. Suitable for a variety of fuels: natural gas, liquefied gas, diesel, etc.

7. Widely used: can be used in Automatic coffee machine industry, Cleaning oil fields,producing form,Wood disinfection.....





• wood pellet fired steam boiler

1. Fully automatic operation: using the microcomputer LCD control system, one key to open, only need to install the water, electricity and smoke exhaust in place, the boiler enters the fully automatic operation state, no professional stoker is needed, saving labor

2. Adequate safety guarantee: The equipment is equipped with high-quality pressure controllers, safety valves, and safety facilities such as overpressure alarm, low water level detection and overheating protection.

3. Energy-saving and high-efficiency: thermal efficiency > 90%, sufficient steam production, and steam output in 5~10 minutes. Production, steam volume and steam dryness have been strictly tested to meet national and industry standards.

4. Easy installation: The whole machine is modular, and it has been configured with water pump, pressure gauge, valve group, feeding system, induced draft fan, energy-saving dust collector, and automatic control electric box. Just connect the power supply, steam pipes, water inlet pipes and sewage pipes to operate.

5. Save money and environmental protection: Use abundant biomass fuel, which belongs to renewable energy, and the operating cost is 1/3 of gas boiler. The combustion is sufficient and the emission is environmentally friendly.

(The biomass steam generator can be customized to use coal as fuel)

6.Widely used: can be used in Automatic coffee machine industry, Cleaning oil fields,producing form,Wood disinfection.....

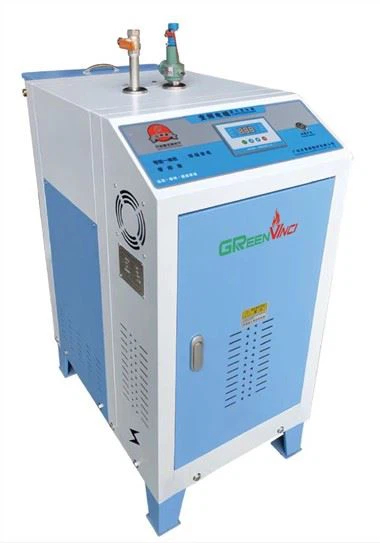

• electric steam generator

1. Environmentally friendly and clean: use electricity as energy, no noise, no pollution, and zero emissions.

2. High thermal efficiency: sealed heating, no waste heat discharge, thermal efficiency > 98%, steam production in 8~10 minutes.

3. Precise temperature control: stable heating, precise temperature adjustment, fully automatic control.

4. Adequate safety guarantee: abnormal power supply, water shortage, leakage, overvoltage interlock protection.

5. Small size: small footprint, easy operation and convenient movement.

6. Widely used: can be used in Automatic coffee machine industry, Cleaning oil fields,producing form,Wood disinfection.....



Steam Generator Compared to Traditional Steam Boiler

1.No need for a dedicated boiler room V.S. Approval is required for the construction of a special boiler room

2. No explosion hazard (water volume<50L V.S. Risk of explosion due to improper operation

3. Easy to install, 2~3 units can be installed in one day V.S. Install 1 unit for at least 15 days

4. The fastest 5 minutes to produce steam V.S. At least 30 minutes of initial heating to produce steam

5. Close to steam equipment, less loss of steam pipeline V.S. The long-distance transmission loss of steam pipeline is large

6. Multiple units can be connected in parallel, low-load operation cost is low V.S. The operating cost of large boilers at low load is very high

7. No need for a professional stoker V.S. Stokers are required to hold a certificate



Our case

1. GreenVinci Biomass Pellet Steam Generator applied in Yuba Processing

GreenVinci has occupied market quota by impressive quality and nice steam generator price. In this video, you may see our machine is easy operate. Only consume 80% biomass fuel compared to market models, this machine has bring so much economic benefits to the customer who had saved more than 60% a month.

2. GreenVinci Biomass Pellet Steam Generator applied in Garment ironing

It's just a common seen stuff to apply steam with ironing! But our steam generator can utilize the plant efficiency and distributor stable and powerful steam to eaxh station. Again, with competitive steam generator price, we are earning good reputation from clients using this type. They are much more saving from the separate electricity iron pad and irons.

3.GreenVinci Electricity Steam Generator applied in Drying mill

Electricity is a good helper in drying mill that they are clean and pure. In many drying industry, we can use electricity powered steam generator to fulfill mass drying.
